HP EliteDesk 800 G3 TWR User Manual

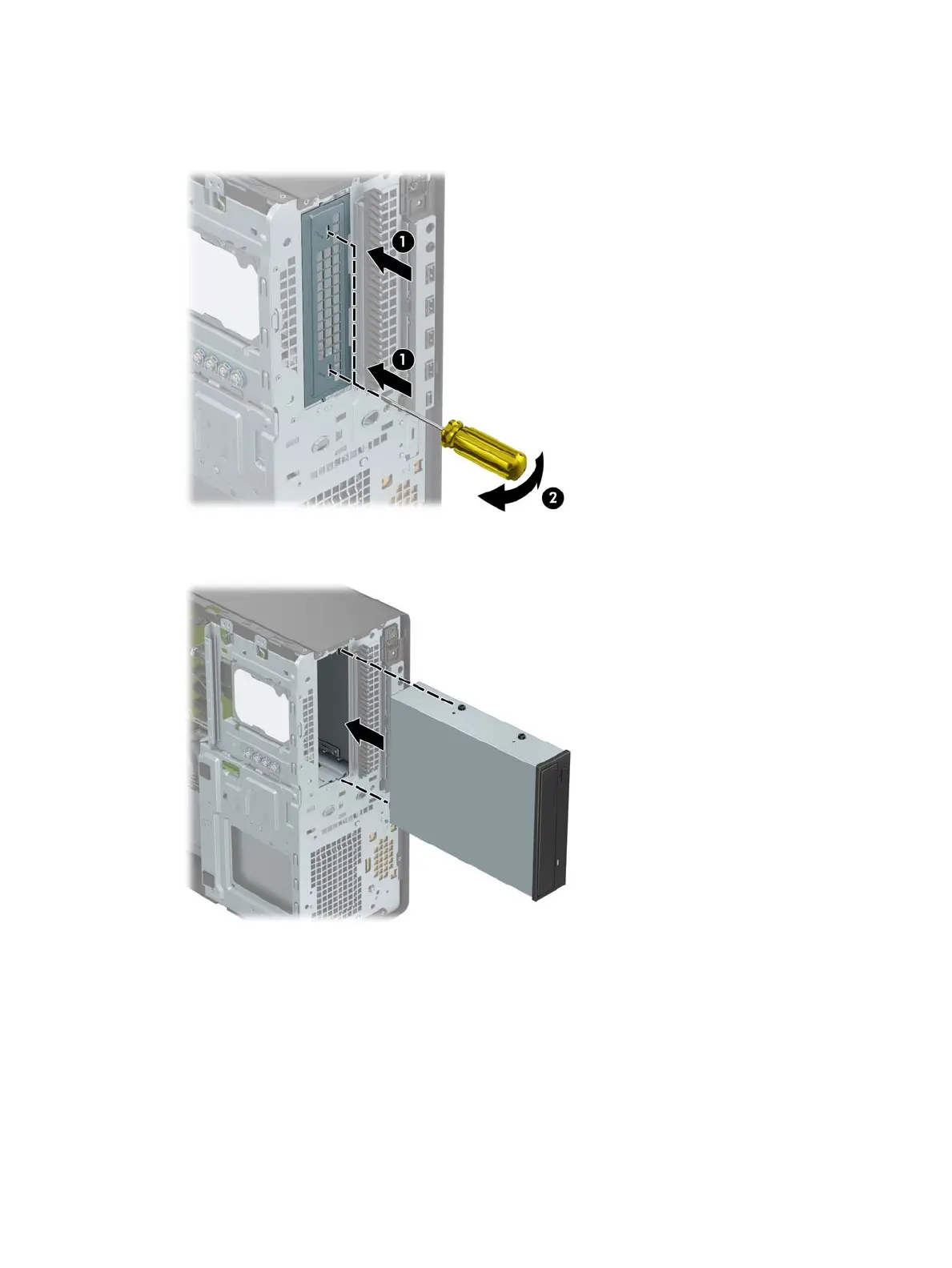

5. If you are installing a 5.25-inch drive in a vacant drive bay, you may need to remove the metal shield
covering the front of the bay. Insert a at-bladed screwdriver into the slots on the front of the shield (1)
and rock the shield back and forth (2) to break it free from the chassis.
6. Slide the drive into the drive bay, making sure to align the mounting screws with the mounting slots,
until the drive snaps into place.
40 Chapter 4 Removal and replacement procedures – Microtower (MT) chassis

HP EliteDesk 800 G3 TWR Specifications

General

Form Factor	Tower
Processor Options	Intel Pentium, Intel Celeron
Memory	Up to 64 GB DDR4-2400 SDRAM
Storage Options	2.5" HDD/SSD, M.2 SSD
Graphics	Intel HD Graphics 630
Operating System	Windows 10 Pro
Audio	Realtek HD ALC221-VB Audio
Expansion Slots	1 PCIe x16
Ports (Front)	2 x USB 3.1 Gen 1, 2 x USB 2.0, 1 x headphone/microphone combo
Ports (Rear)	4 x USB 3.1 Gen 1, 4 x USB 2.0, 1 x VGA, 1 x DisplayPort, 1 x RJ-45, 1 x audio line-out, 1 x audio line-in
Power Supply	250W, up to 92% efficient PSU
Optical Drive	Optional DVD-Writer
Chipset	Intel® Q270
