8-9
Configuring IP Addressing
IP Configuration

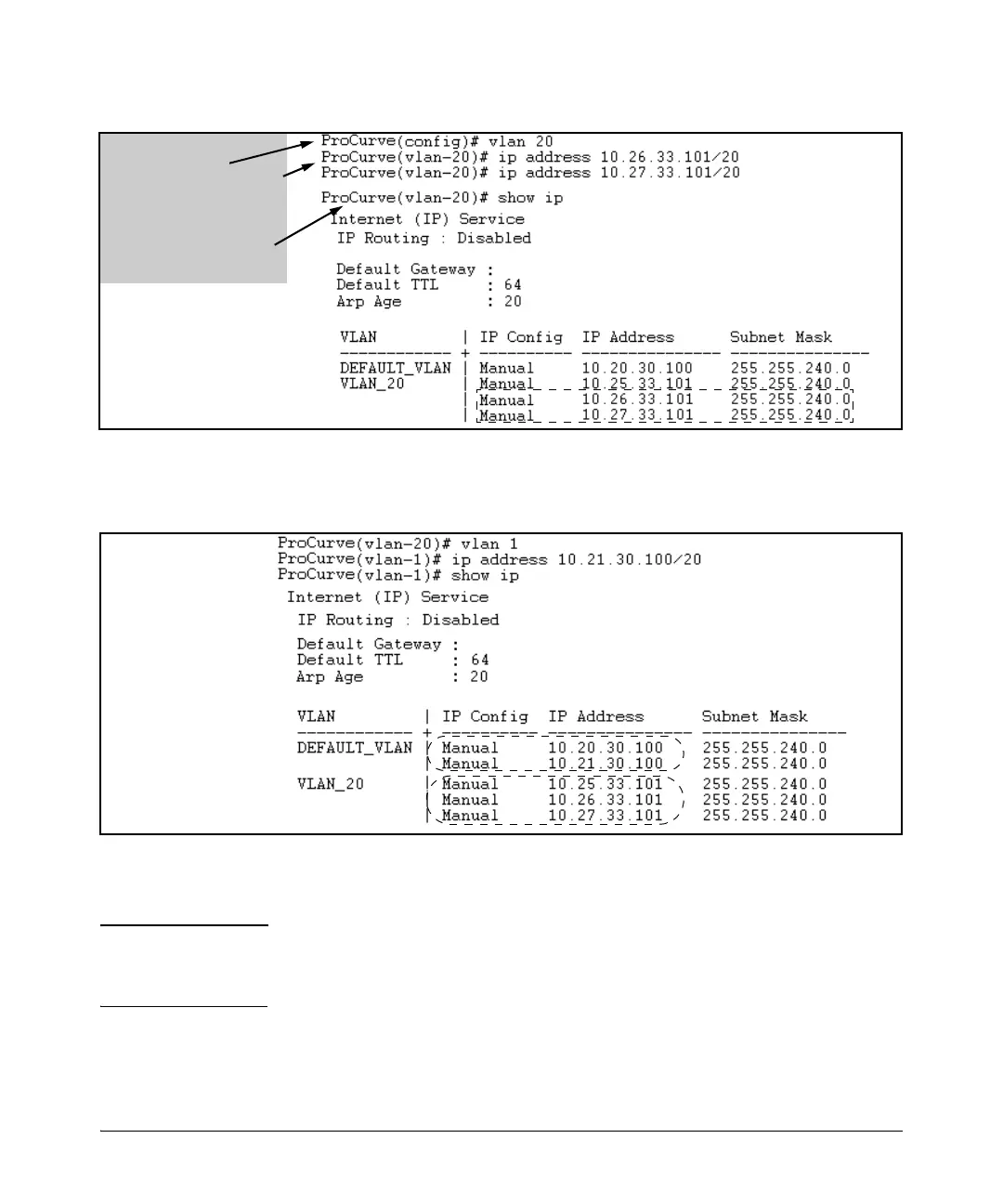

Figure 8-4. Example of Configuring and Displaying a Multinetted VLAN
If you then wanted to multinet the default VLAN, you would do the following:
Figure 8-5. Example of Multinetting on the Default VLAN
Note The Internet (IP) Service screen in the Menu interface (figure 8-1 on page 8-5)
displays the first IP address for each VLAN. You must use the CLI show ip
command to display the full IP address listing for multinetted VLANs.
1. Go to VLAN 20.
2. Configure two additional
IP addresses on VLAN
20.
3. Display IP addressing.
