Using the ProCurve Web Browser Interface
Status Reporting Features
Status Reporting Features
Browser elements covered in this section include:
■ The Overview window (below)
■ Port utilization and status (page 5-17)
■ The Alert log (page 5-20)
■ The Status bar (page 5-22)
The Overview Window
The Overview Window is the home screen for any entry into the web browser
interface.The following figure identifies the various parts of the screen.

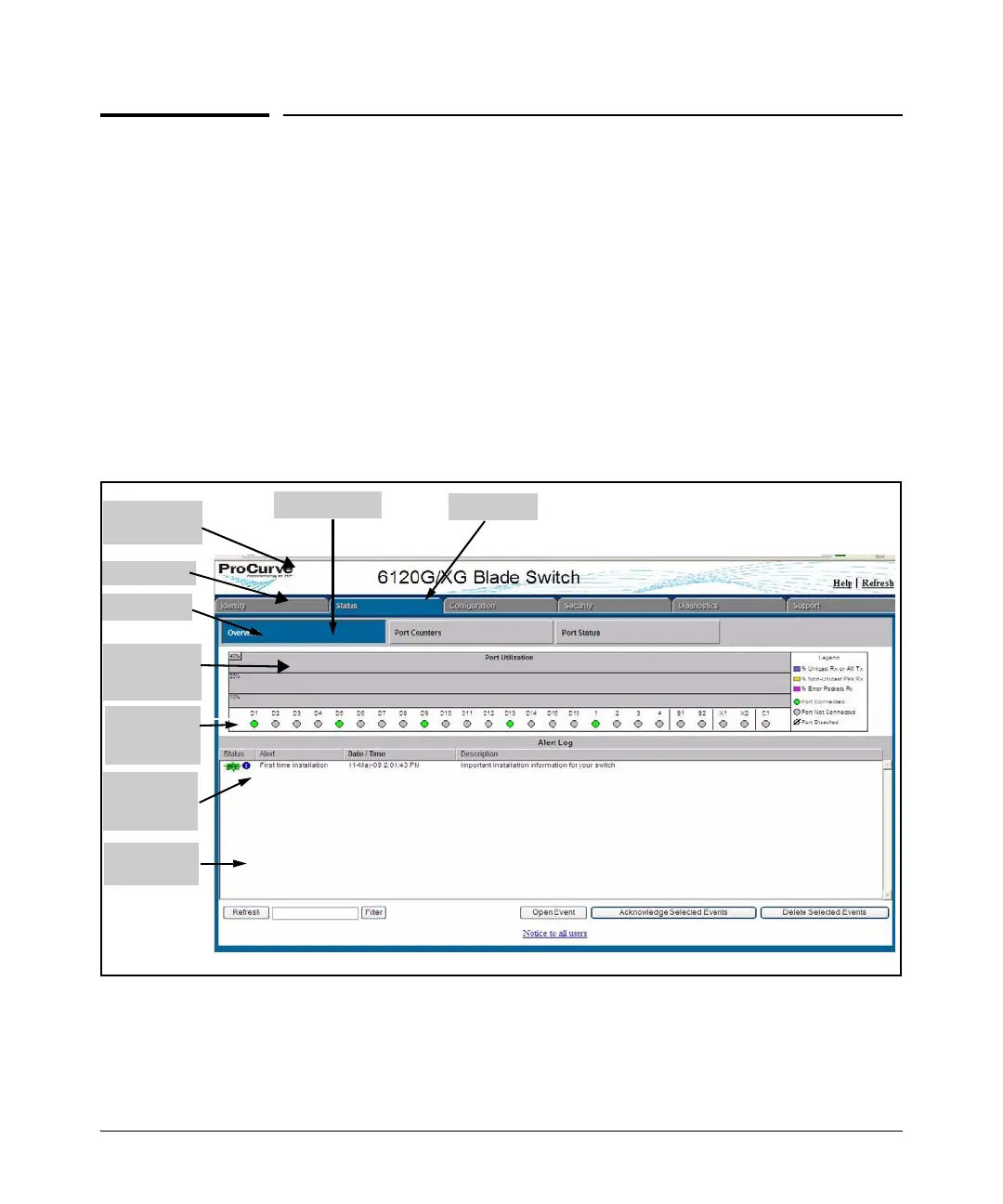

Figure 5-8. The Status Overview Window
Alert Log
Control Bar
Port Utiliza-
tion Graphs
(page 5-17)
Alert Log
(page 5-20)
Port Status
Indicators
(page 5-19)
Button Bar
Tab Bar
Status Bar
(page 5-22)
Active Tab
Active Button
