Port Trunking
CLI: Viewing and Configuring Port Trunk Groups

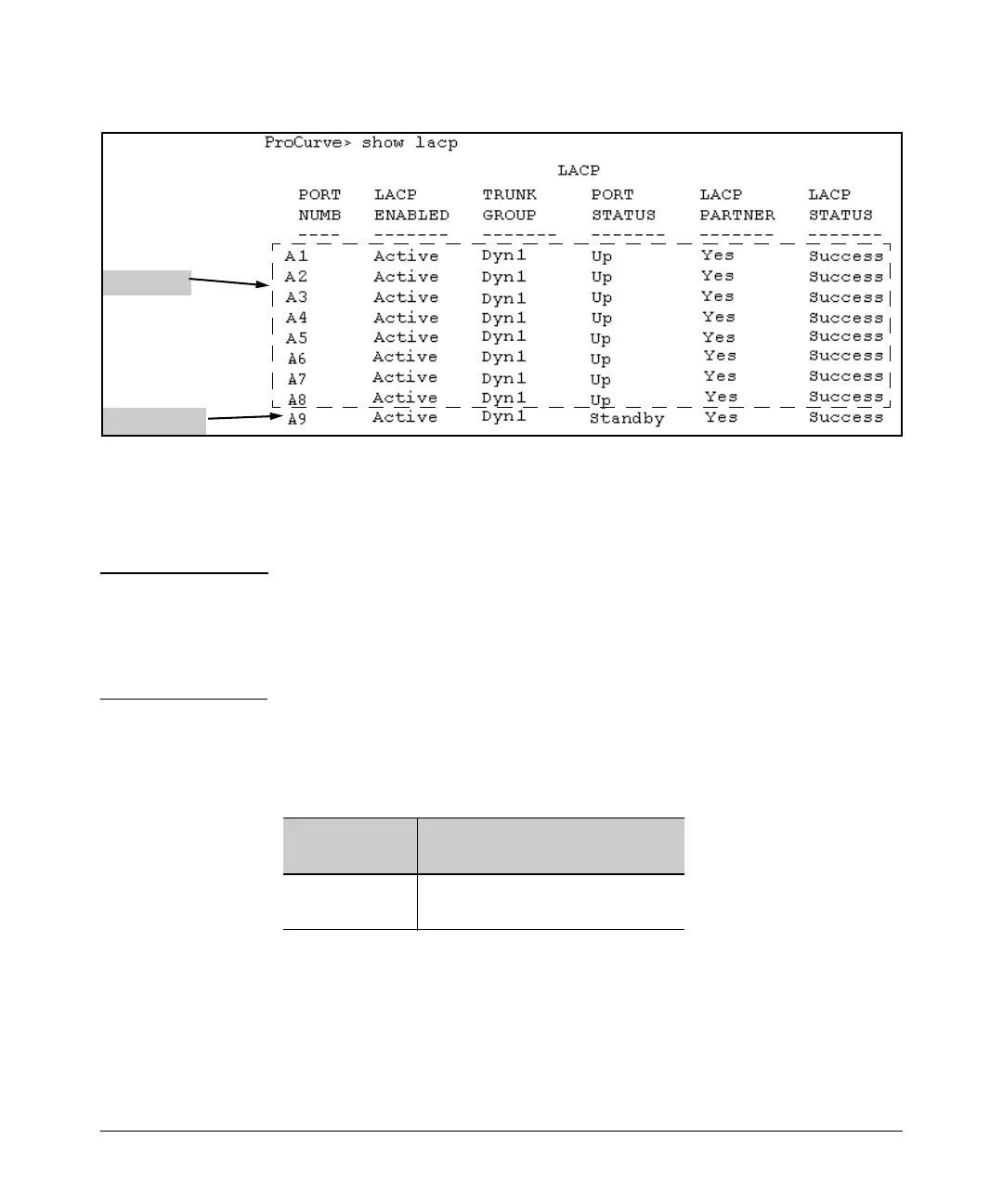

Figure 11-9. Example of a Dynamic LACP Trunk with One Standby Link
Using the CLI To Configure a Static or Dynamic Trunk
Group
Important Configure port trunking before you connect the trunked links between
switches. Otherwise, a broadcast storm could occur. (If you need to connect
the ports before configuring them for trunking, you can temporarily disable
the ports until the trunk is configured. Refer to “Enabling or Disabling Ports
and Configuring Port Mode” on page 10-15.)
The table on page 11-5 describes the maximum number of trunk groups you
can configure on the switch. An individual trunk can have up to eight links,
with additional standby links if you’re using LACP. You can configure trunk
group types as follows:
The following examples show how to create different types of trunk groups.
“Up” Links
Standby Link
Trunk Type Trunk Group Membership
TrkX (Static) DynX (Dynamic)
LACP Yes Yes
Trunk Yes No
