9-64

Configuring Advanced Features

Port-Based Virtual LANs (Static VLANs)

Configuring Advanced

Features

Displaying the Configuration for a Particular VLAN . This command

uses the VID to identify and display the data for a specific static or dynamic

VLAN.

Syntax: show vlan <vlan-id>

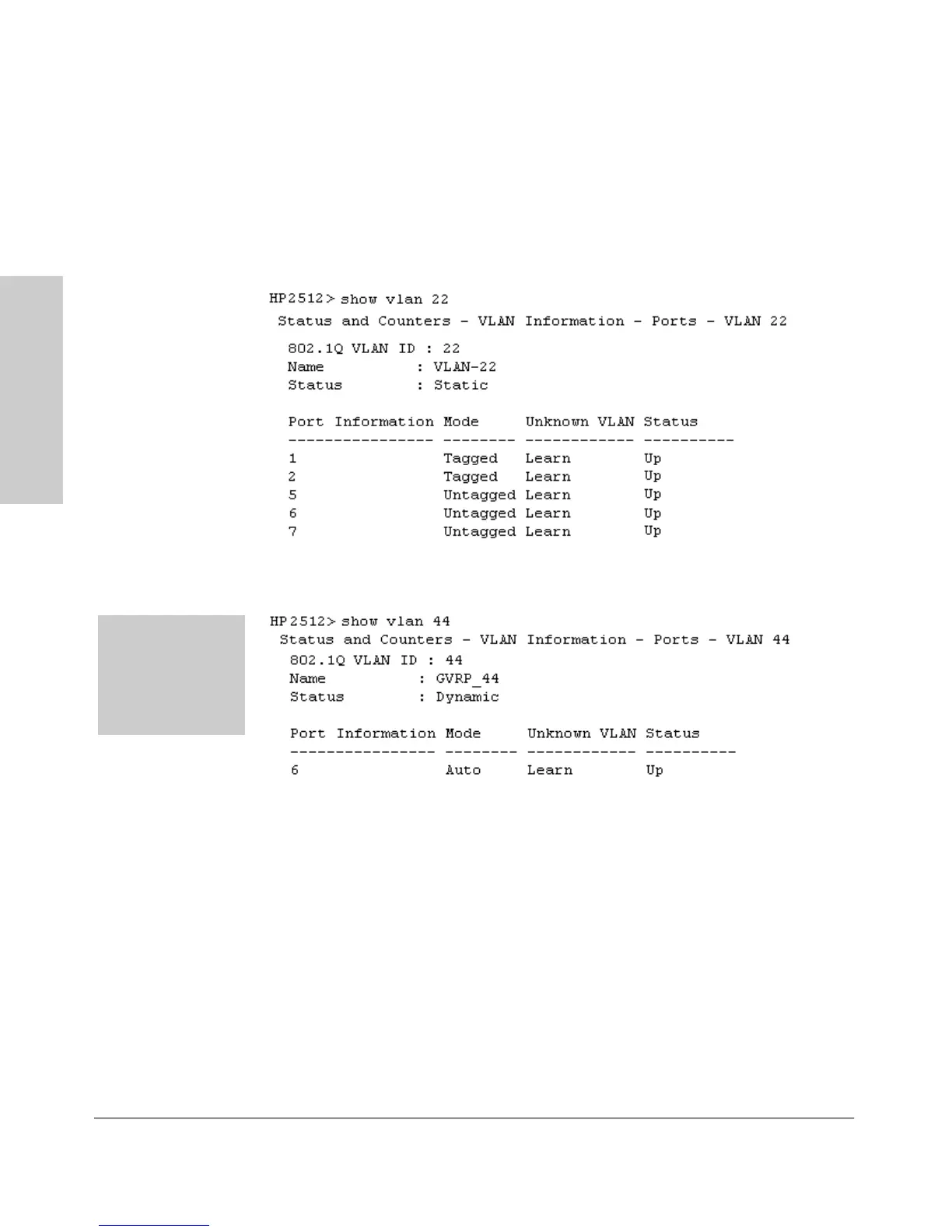

Figure 9-51. Example of “Show VLAN” for a Specific Static VLAN

Figure 9-52. Example of “Show VLAN” for a Specific Dynamic VLAN

Show VLAN lists this

data when GVRP is

enabled and at least

one port on the switch

has dynamically

joined the designated

VLAN.
