Illustrated parts catalog 16
Illustrated parts catalog

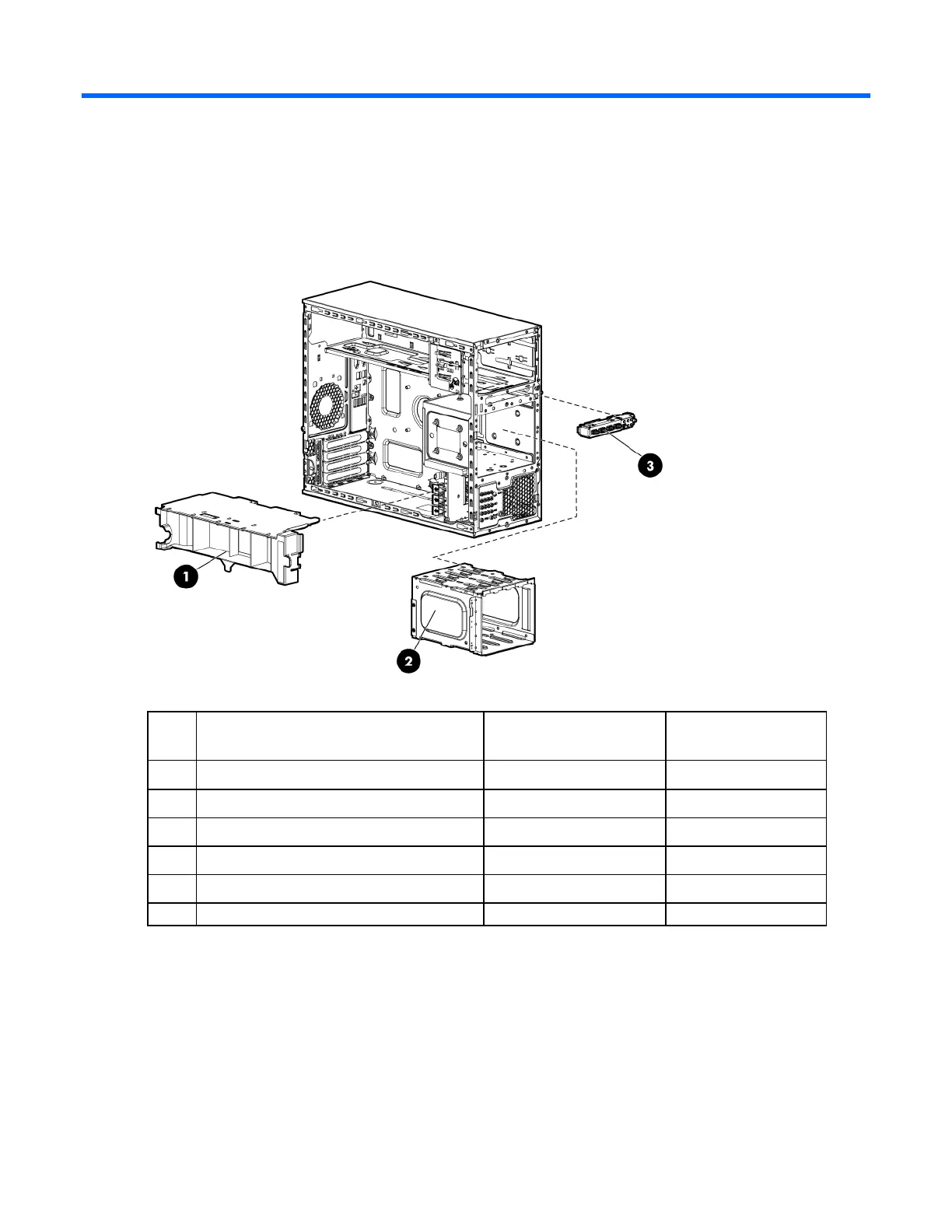

Mechanical components
Item Description Spare part number
Customer self repair
(on page
)
1
Air baffle 645097-001 Mandatory
1
2
Hard drive cage assembly
Mandatory
1
a) Non-hot-plug LFF hard drive cage assembly 644748-001
b) Hot-plug LFF hard drive backplane* 519736-001
c) Hot-plug SFF hard drive backplane* 511785-001
3
Front I/O module 644760-001 Mandatory
1
* Not shown
1
Mandatory—Parts for which customer self repair is mandatory. If you request HP to replace these parts, you will be
charged for the travel and labor costs of this service.
2
Optional—Parts for which customer self repair is optional. These parts are also designed for customer self repair. If,
however, you require that HP replace them for you, there may or may not be additional charges, depending on the type
of warranty service designated for your product.
3
No—Some HP parts are not designed for customer self repair. In order to satisfy the customer warranty, HP requires that
an authorized service provider replace the part. These parts are identified as "No" in the Illustrated Parts Catalog.
