HP ProLiant ML110 G7

Server component identification 84

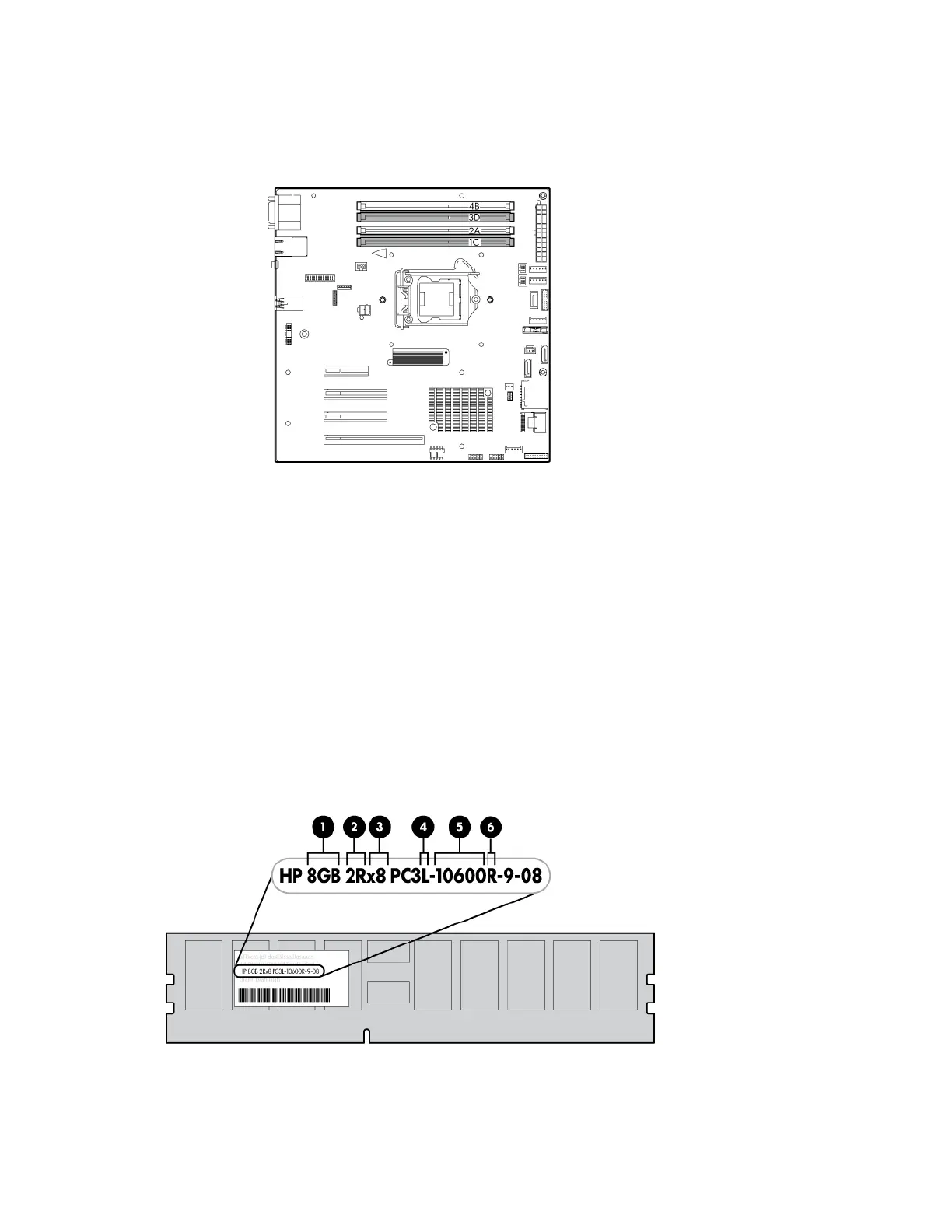

DIMM slot locations
DIMM slots are numbered sequentially for the processor.
Populate the DIMM slots in the following sequence:
• 1 DIMM: 2A
• 2 DIMMs: 2A+4B
• 3 DIMMs: 2A+4B+1C
• 4 DIMMs: All DIMMs
DIMM identification
To determine DIMM characteristics, use the label attached to the DIMM and the following illustration and
table.
