HP ProLiant ML110 G7 Maintenance And Service Guide

Server component identification 81
4
Slot 1 PCIe2x16 (16, 8, 4, 1)
5
Slot 2 PCIe2x8 (4, 1)
6
Slot 3 PCIe2x8 (4, 1)
7
Slot 4 PCIe2x4 (1)
8
USB connectors (4)
9
HP dedicated iLO management port (option)
10
UID button/LED
11
10/100/1000 NIC1 connector/shared iLO management port
12
10/100/1000 NIC2 connector
13
Video connector
14
Serial connector

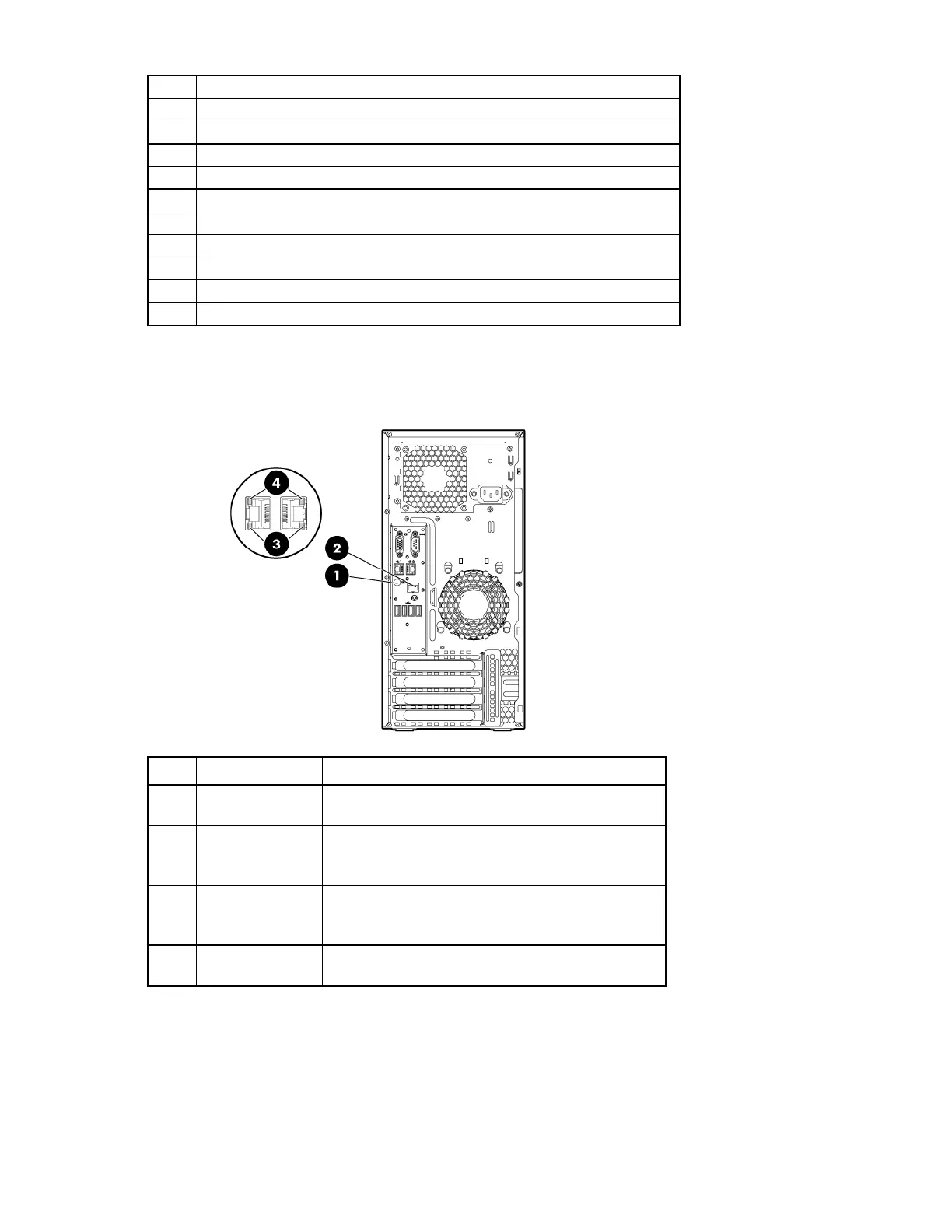

Rear panel LEDs and buttons
Item Description Status
1
UID LED/button Flashing blue = Activated
Off = System being managed remotely/deactivated
2
HP dedicated iLO
management port
option LEDs
Green = Network link
Flashing green = Network link and activity
Off = No link to network
3
NIC activity LED Green = Network activity
Flashing green = Network activity
Off = No network activity
4
NIC link LED Green = Network link
Off = No network link

HP ProLiant ML110 G7 Specifications

General

Product Type	Server
Form Factor	Tower
Processor Sockets	1
Chipset	Intel C202
Memory Type	DDR3 UDIMM
Maximum Memory	16 GB
Memory Slots	4
Processor	Intel Xeon E3-1200 series
Storage	SAS or SATA
Drive Bays	4 LFF or 8 SFF
Hard Drives	Optional
Optical Drive	Optional
Network Controller	HP NC112i Gigabit Ethernet Adapter (1 port)
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Storage Controller	HP Dynamic Smart Array B120i
