Power cabling

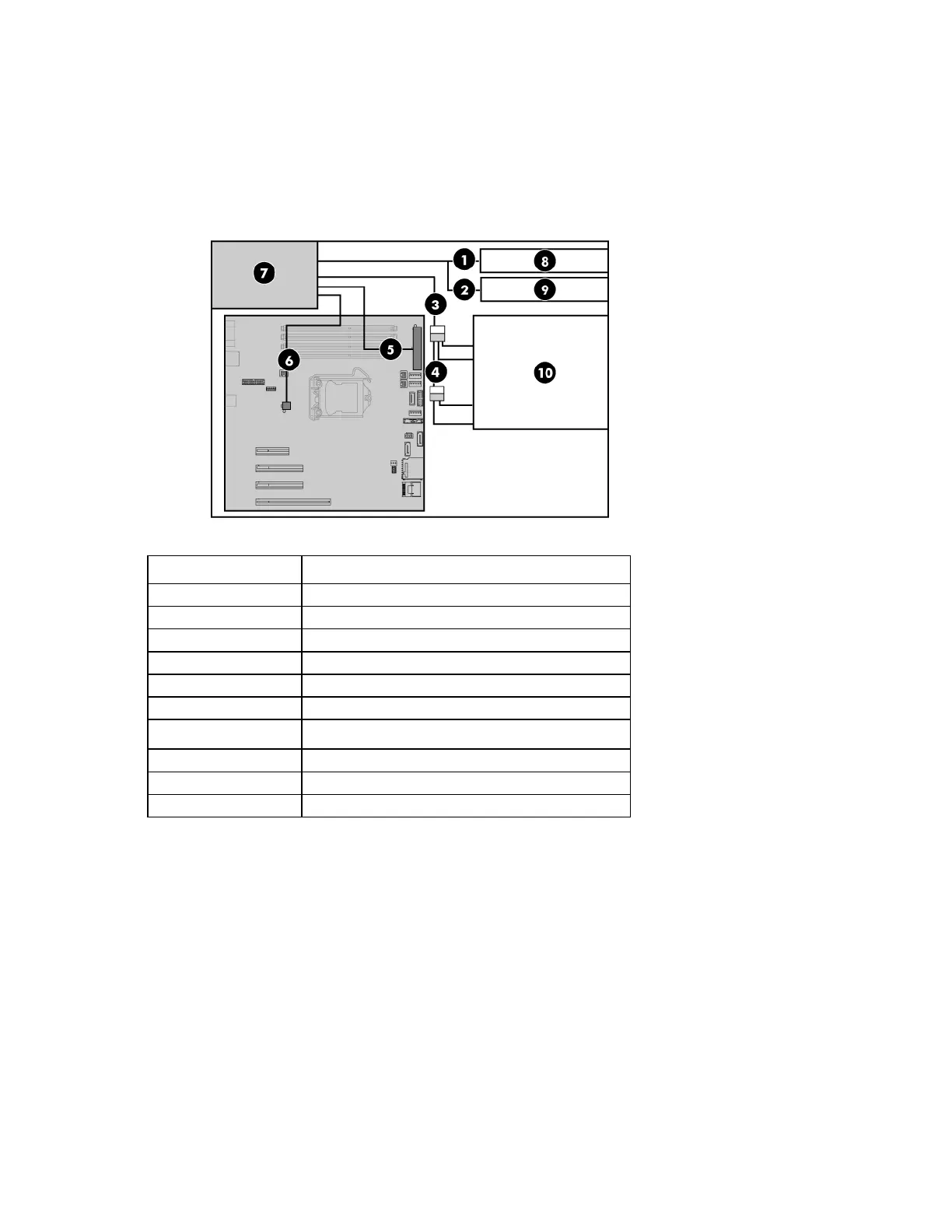

Four LFF hard drive non-hot-plug, nonredundant power cabling
Item Description
1
Optical drive bay power cable
Optional optical drive bay power cable
3
Hard drives 3 and 4 cables
4
Hard drives 1 and 2 cables
5
Power cable (24-pin)
6
Power cable (4-pin)
7
Non-hot-plug power supply unit
8
Optical drive bay
9
Optional optical drive bay
Non-hot-plug LFF hard drive bay (1 to 4)
