Removal and replacement procedures 59
4.

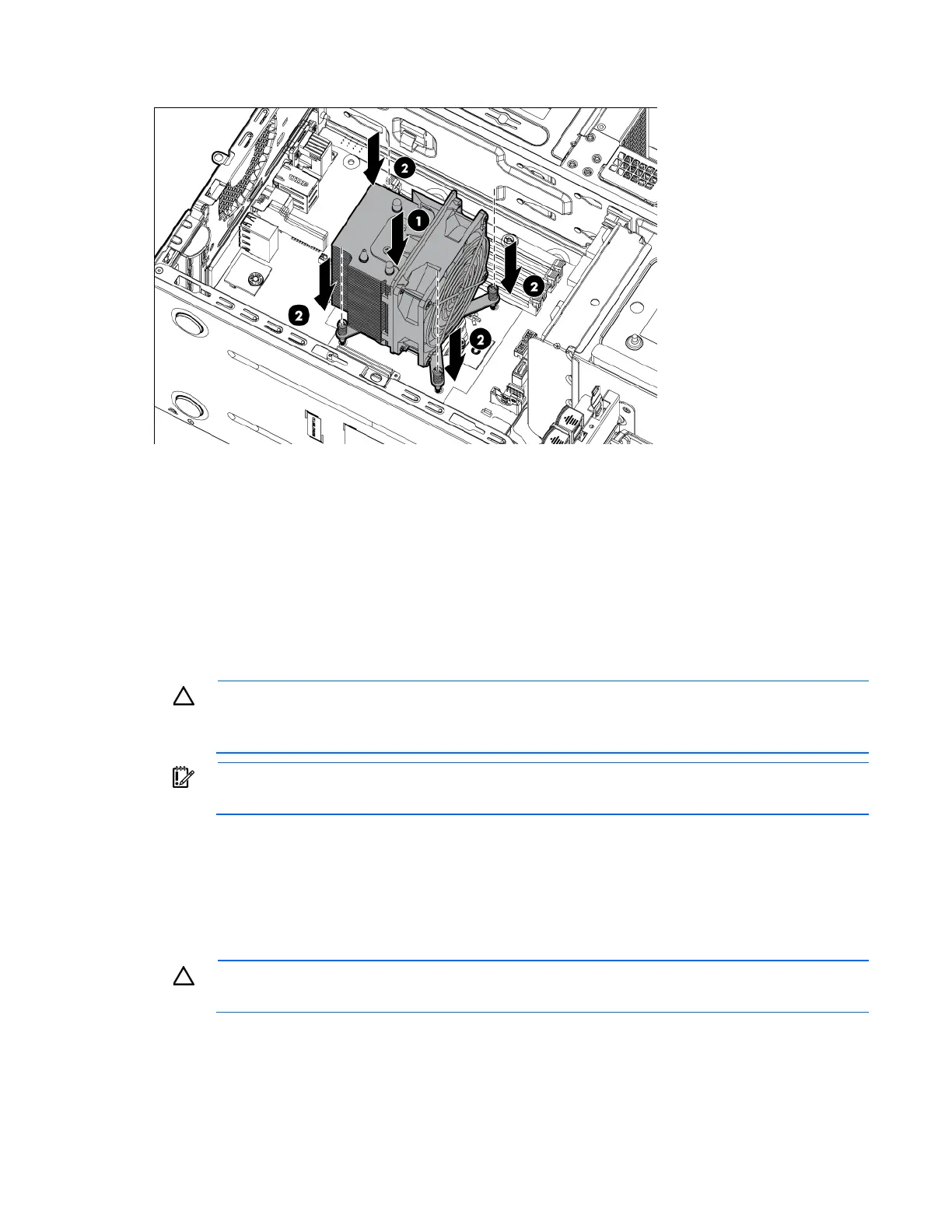

Install the heatsink, and then insert and tighten the four screws.
5. Install the power connector.
6. Connect the fan cable to the fan connector on the system board.
7. Install the air baffle ("Installing the air baffle" on page 27).
8. Install the access panel ("Installing the access panel" on page 24).
9. Install and lock the front bezel ("Installing the front bezel" on page 25).
10. Power on the server.
Processor
CAUTION: To avoid damage to the processor:
• Handle the processor only by the edges.
• Do not touch the bottom of the processor, especially the contact area.
IMPORTANT: If installing a processor with a faster speed, update the system ROM before
installing the processor.
To remove the processor:
1. Power off the server ("Power down the server" on page 23).
2. Unlock and remove the front bezel. ("Removing the front bezel" on page 25)
3. Remove the access panel ("Removing the access panel" on page 24).
4. Remove the heatsink.
CAUTION: Failure to completely open the processor locking lever prevents the processor from
seating during installation, leading to hardware damage.
