Removal and replacement procedures 36

Slide the optional drive cage assembly partially into the server chassis.

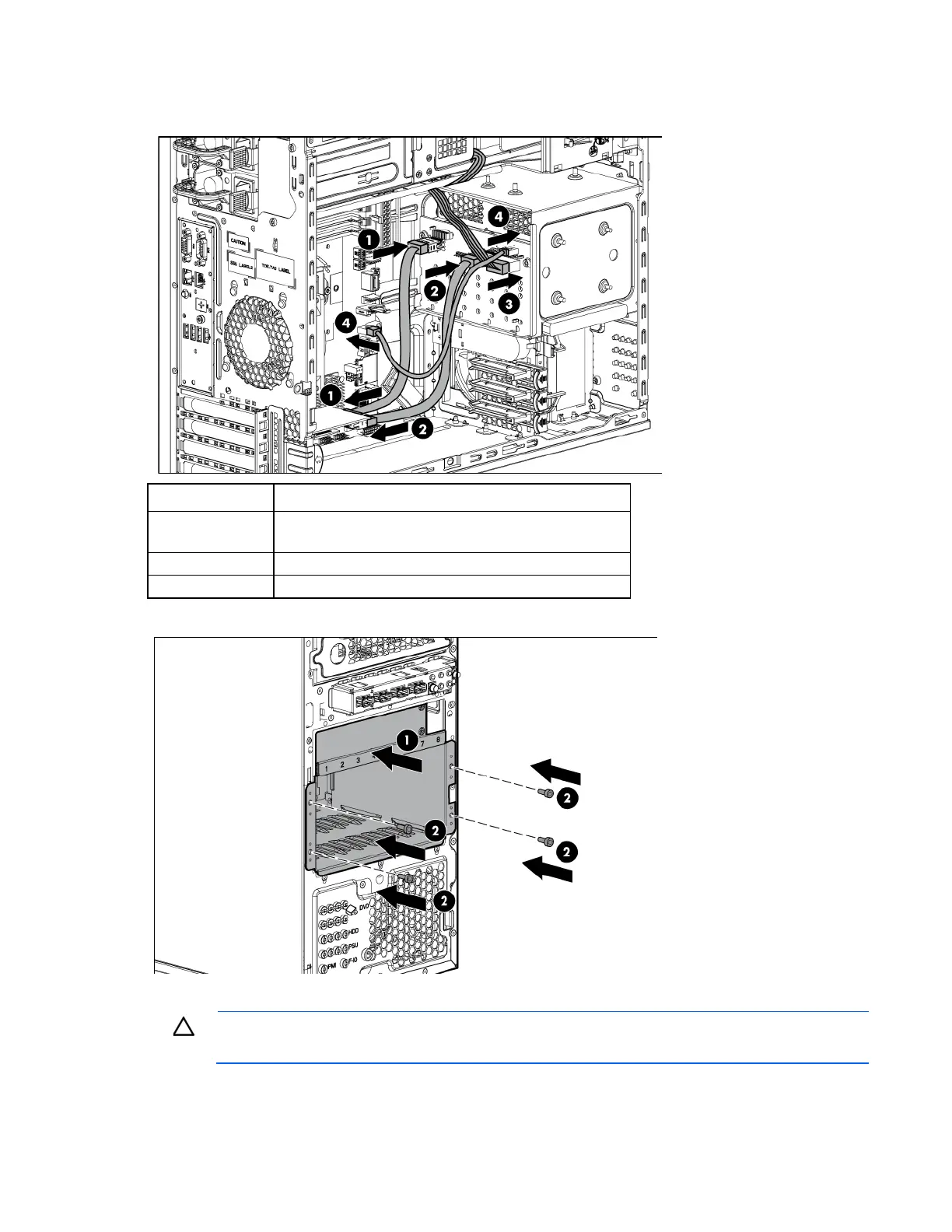

8. Connect the cabling to the hard drive cage.

Item Description

1 and 2

Connect both mini-

SAS cables to the HP Smart Array SAS

RAID Controller card connector

Connect the power cable

Connect the I

C cable

9. Slide the drive cage assembly fully into the server chassis and install the four screws.

10. Install the hard drives and hard drive blanks in the hard drive cage.

CAUTION: To prevent improper cooling and thermal damage, do not operate the server unless

all bays are populated with either a component or a blank.
