Subsystem LED behavior
Removable HPE Flexible Smart Array controller/
Smart SAS HBA controller
6 flashes
System board PCIe slots 7 flashes
Power backplane or storage backplane 8 flashes
Power supply 9 flashes

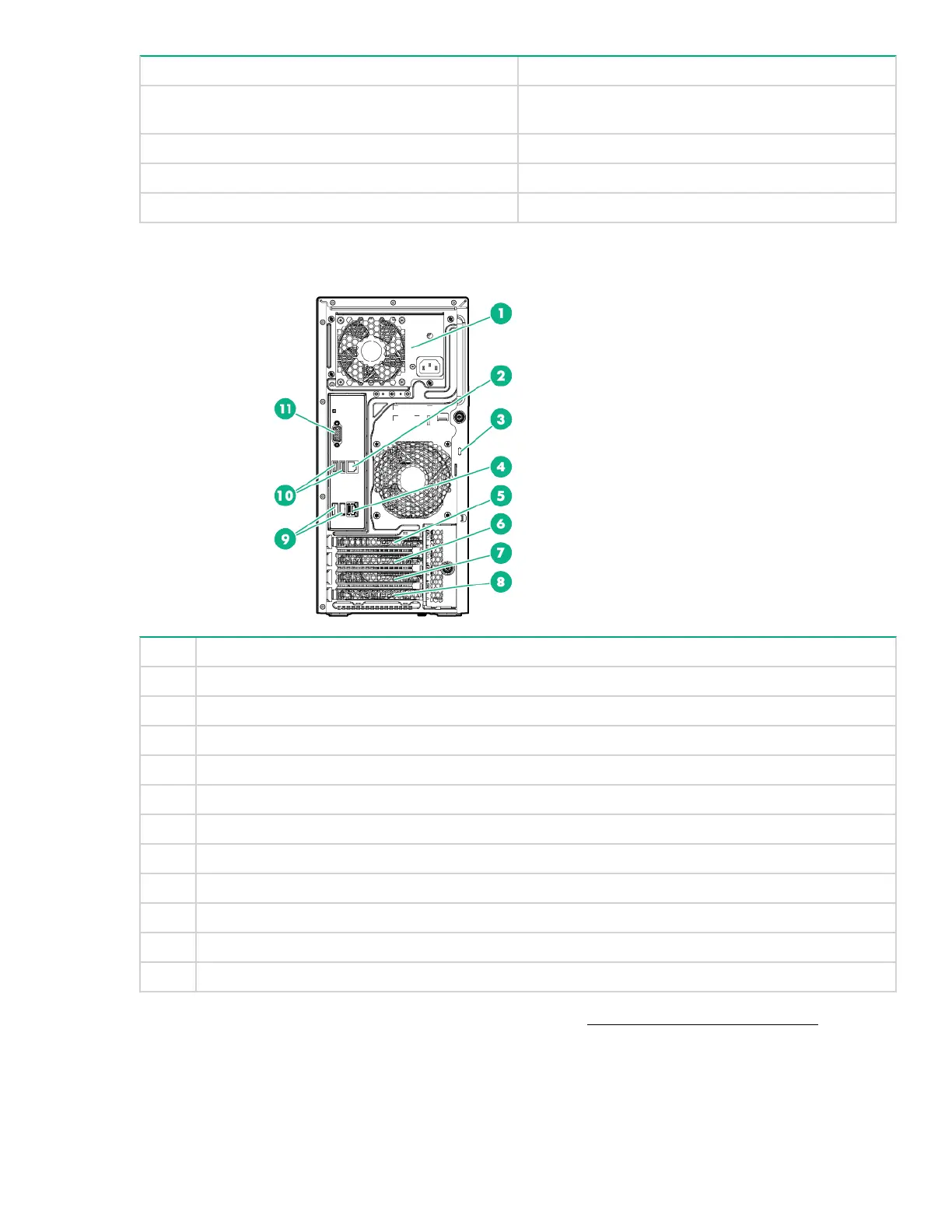

Rear panel components
Item Description
1 Power supply
2 NIC connector 2
3 Kensington lock slot
4 Nic connector 1/ Shared iLO connector
5 PCIe slot 4, PCIe3 x16 (16,8,4,1), full-length*
6 PCIe slot 3, PCIe3 x4 (1), full-length*
7 PCIe slot 2, PCIe3 x4 (1), full-length*
8 PCIe slot 1, PCIe3 x8 (4,1), half-length*
9 USB 3.0 connectors
10 USB 2.0 connectors
11 Video connector
* For more information on the expansion slot specifications, see "PCIe expansion slot definitions."
Rear panel components 9
