Hardware Options Installation 75

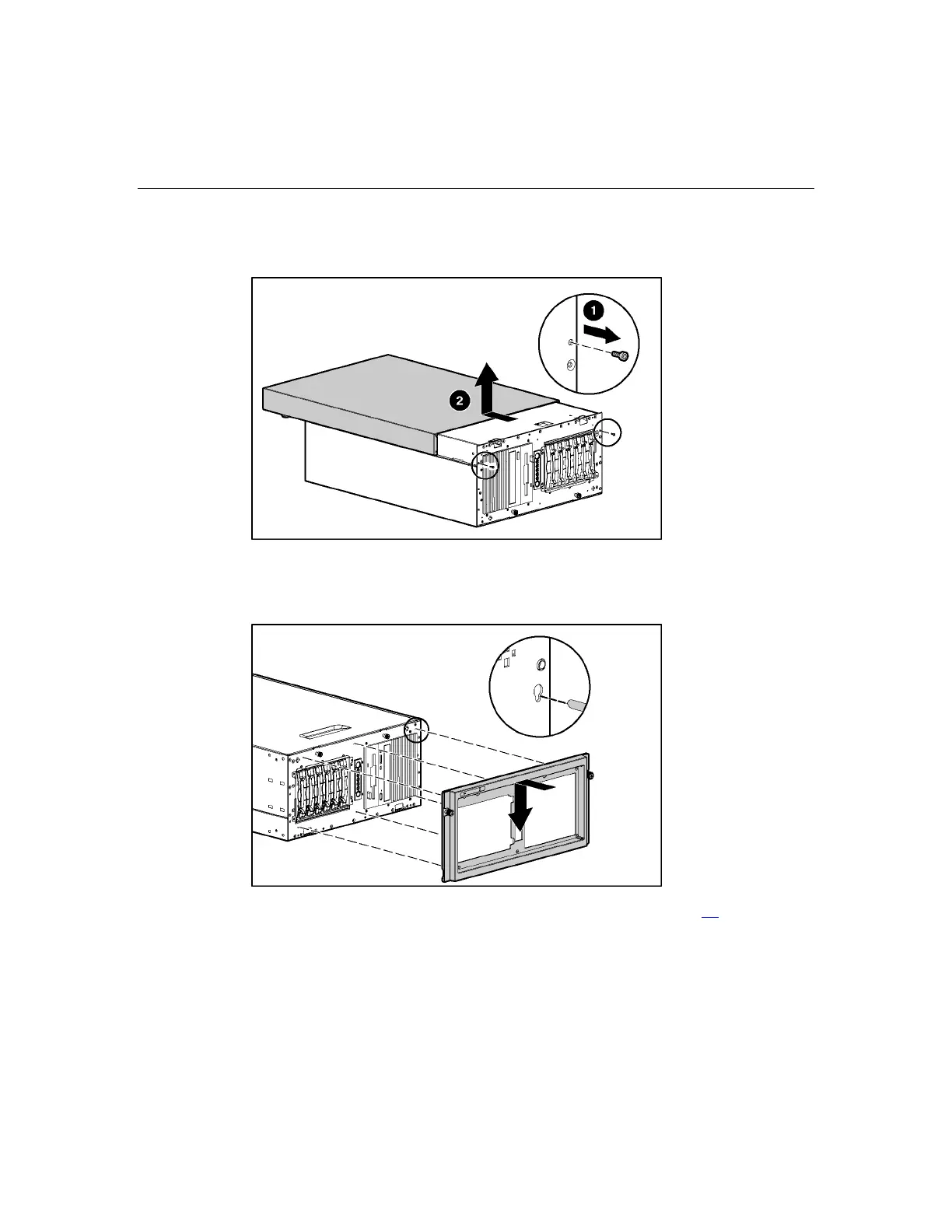

a. Use the T-10 Torx screwdriver to remove the two front panel screws.
Slide tower configuration panel back and then away from the chassis.
7. Align the pins on the server bezel with the corresponding slots on the chassis
and push down. Secure the server bezel to the chassis by tightening the
thumbscrews.
8. Replace the access panel ("Removing Access Panel" on page 27
).
