14 HP ProLiant ML350 Generation 4p Server User Guide
Location LED Status
5 iLo NIC Activity LED On = Link
Flashing = Activity
Off = No Link
6 iLo NIC standby LED On = Standby
Off = Activity

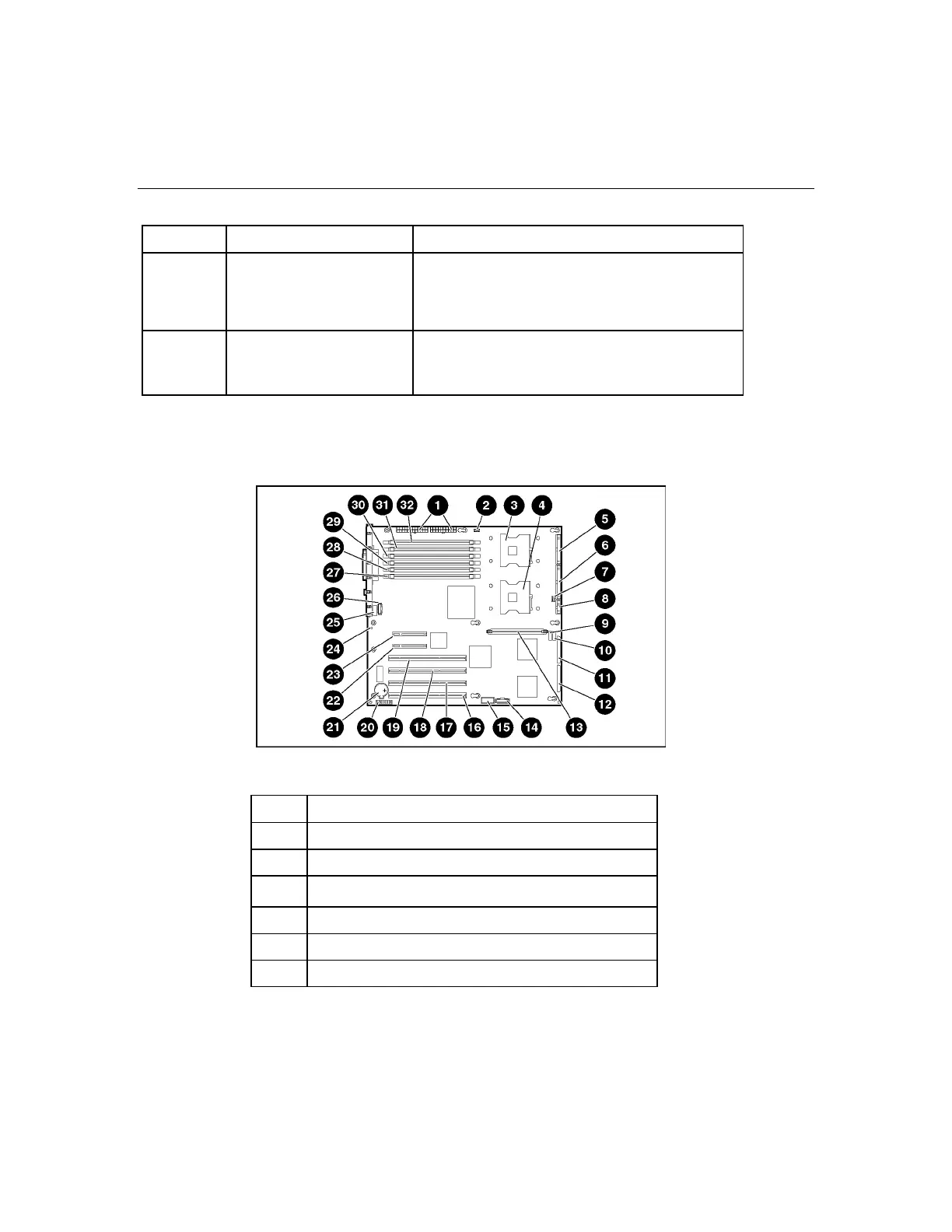

System Board Components
NOTE: PPM 1 is embedded onto the system board.
Item Description
1 Power supply connectors
2 Processor 1 heatsink connector
3 Processor socket 1
4 Processor socket 2
5 Diskette drive connector
6 Primary IDE connector (ATAPI devices)
