Overview 15

Configuration G

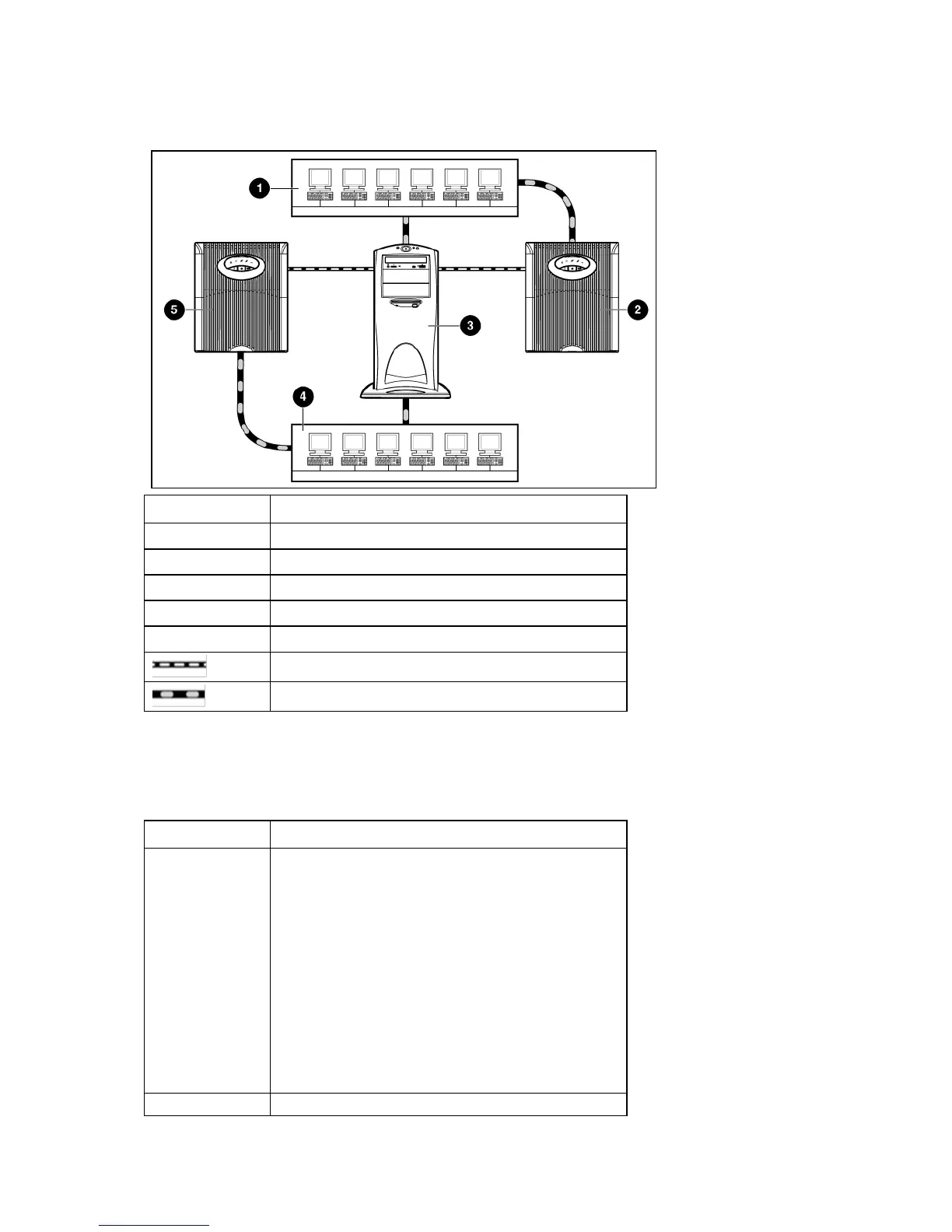

This figure illustrates a redundant configuration with dual subnet.

Item Description

1 Subnet A

2 UPS A

3 Server

4 Subnet B

5 UPS B

Power connection

Communication path

Web interface requirements

The following table lists the minimum requirements necessary to operate the web interface.

Software Browser

Web browser on

a client

Microsoft® operating systems

•

Microsoft® Internet Explorer 6.0 with Service Pack

1 (32-bit only)

•

Microsoft® Internet Explorer 7.0 (32-bit only)

•

Microsoft® Internet Explorer 8.0 (32-bit only)

Red Hat Linux operating system

•

Firefox 2.0.x (included in the bundle)

•

Firefox 3.0.14

SUSE Linux operating systems

•

Firefox 2.0.x

•

Mozilla 1.6

Monitor Minimum supported resolution of 1024 x 768, 16-bit
