HP UPS Management Module web interface 64

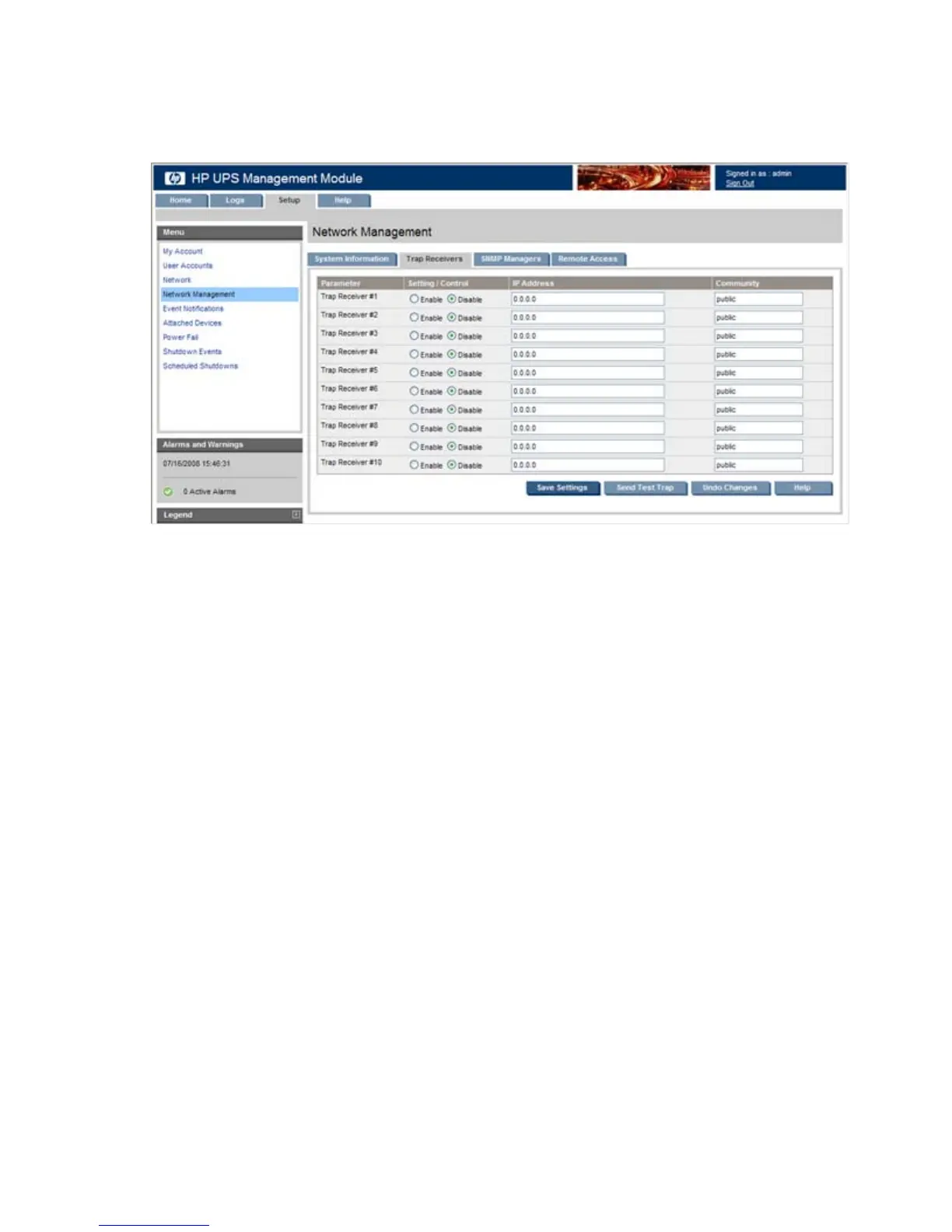

Trap Receivers tab
This screen enables administrators to enter information for servers that should receive SNMP traps from
the management module.
To configure which servers should receive traps:
1. Enable SNMP traps for up to 10 servers.
2. Enter the IP address for up to 10 trap recipients in the IP Address field.
3. Enter the community string for each trap recipient.
4. Do one of the following:
o Click Save Settings to save the information.
o Click Undo Changes to undo the changes.
o Click Help to view online help.
5. Click Send Test Trap to send a test SNMP trap.
