Installing the HP UPS Management Module 21

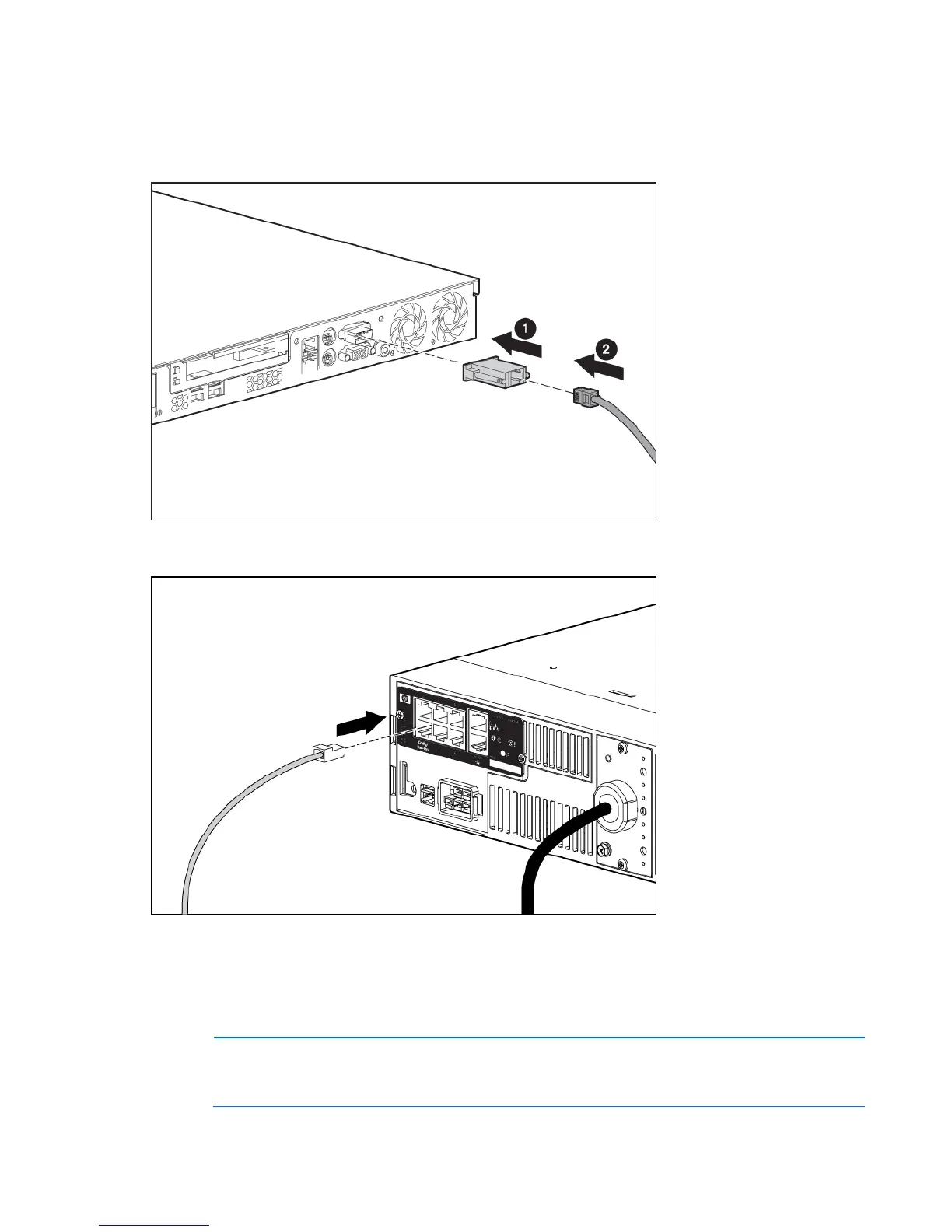

Connecting the configuration cable
1. Connect a DB-9 to RJ-45 adapter to a serial connector on the host computer.
2. Connect one end of an RJ-45 cable to the RJ-45 connector on the adapter.
3. Connect the other end of the RJ-45 cable to the Config/Pass-Thru connector on the management
module.
This connection is used to configure and access the management module locally through a terminal
emulation program.
Launching a terminal emulation program
NOTE: HyperTerminal is the serial communication program provided with Microsoft®
Windows® and is used in this section as an example for setting up a terminal emulation
session. If you are using another utility, the steps might be different.
