Installing the HP UPS Management Module 18

Installing the HP UPS Management Module

Required tools

No. 2 Phillips screwdriver

Installing the management module

NOTE: It is not necessary to power down the UPS before installing the management module.

1. Disconnect the communications cable from the option card.

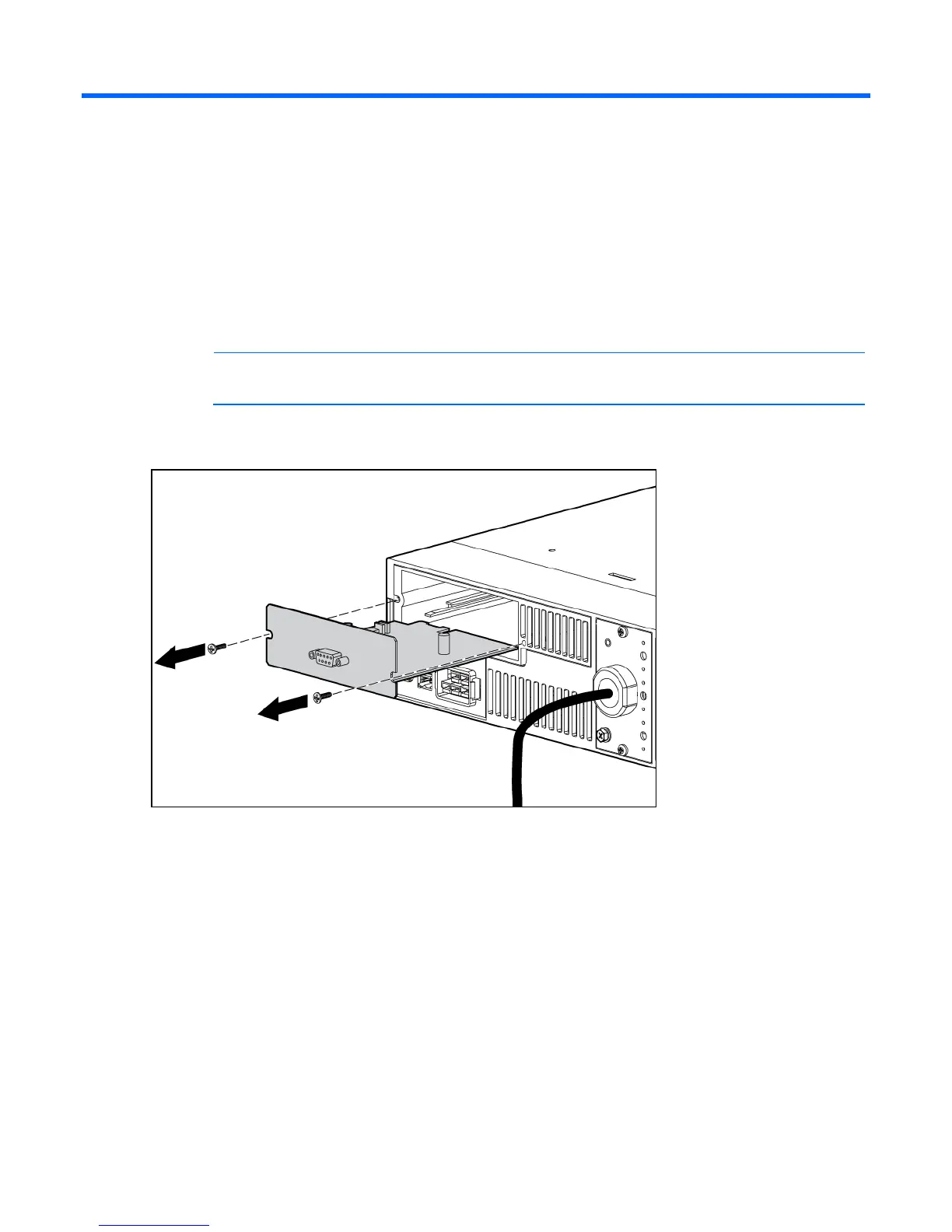

2. Remove the two screws securing the option card or cover plate and slide the card or plate out.

Default Chapter1
- User Guide1
