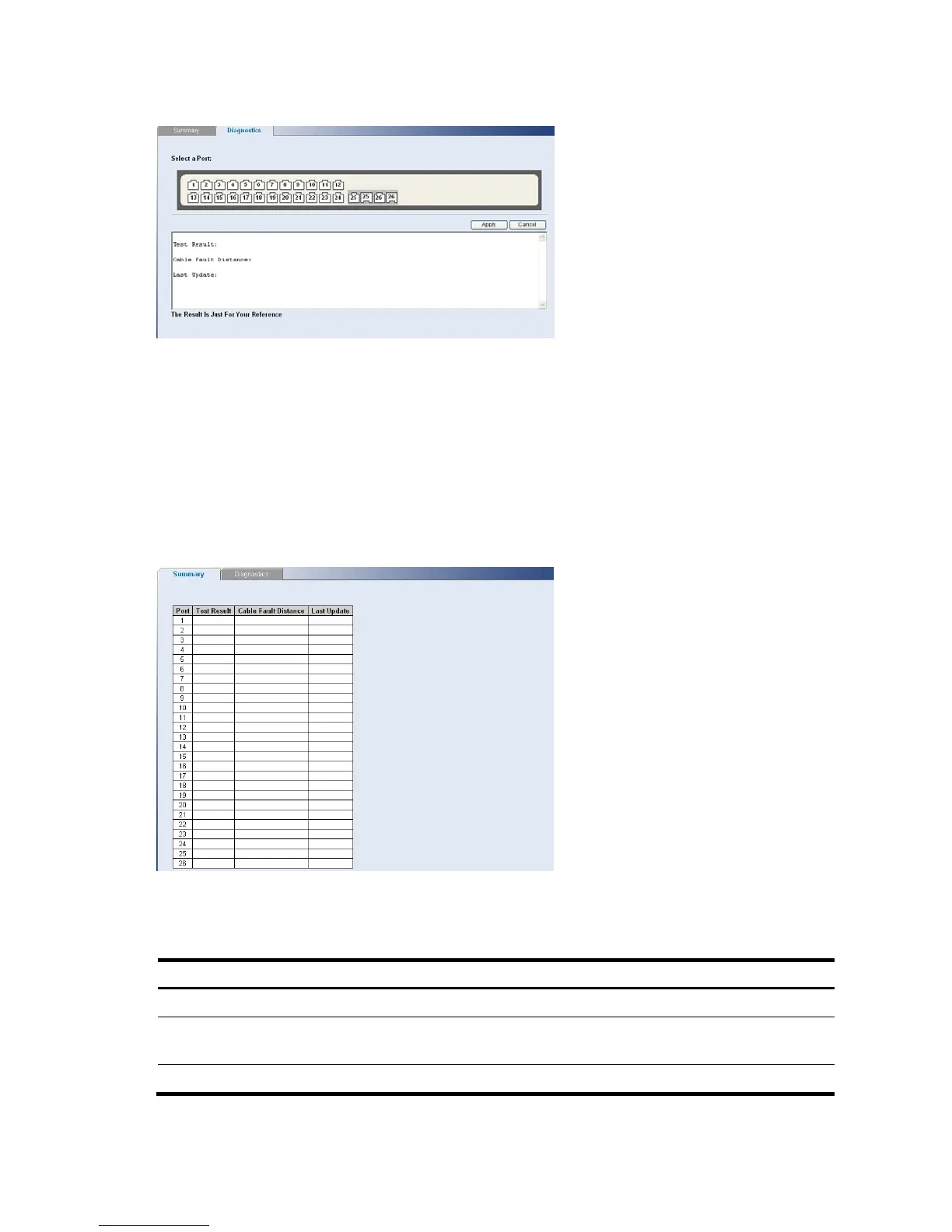

Figure 150 Cable Diagnostic Page
Step1 Select a port to be tested.
Step2 Click Apply. The test results of the port are displayed in the textbox.
Viewing Cable Diagnostics
The Cable Diagnostics Summary Page displays information on Test Result, Cable Fault Distance, or Last
Update for every port on the switch.
Click Monitoring  Cable Diagnostics  Summary. The Cable Diagnostics Summary Page opens.
Figure 151 Cable Diagnostic Summary Page
The Cable Diagnostics Summary Page contains the following fields:
Table 120 Cable Diagnostics Summary Page item description
Item Descri
p
tion
Test Result Displays the cable test results.
Cable Fault Distance
Indicates the distance in meters from the port where the cable error
occurred.
Last Update Indicates the last time the port was tested.
