40
Table 63 VLAN Detail Page item description
Item Descri
tion
Select a VLAN to
Display
Selects a VLAN to be display its settings
Membership type
Displays the membership type for each VLAN. The possible field values are:
Untagged: Indicates the interface is an untagged member of the VLAN.
Tagged: Indicates the interface is a tagged member of a VLAN. VLAN tagged
frames are forwarded by the interface. The frames contain VLAN information.
Not A Member: Indicates the interface is not a member of the VLAN
Each port on the switch is capable of passing tagged or untagged frames.
The following describes how the switch will handle tagged and untagged frames.
When a port receives a tagged frame with a VLAN ID and the port is a member
(untagged or tagged) of that VLAN, the frame is accepted. Otherwise if the port
is not a member of that VLAN, the frame is discarded.
When a port receives an untagged frame and the port is an untagged member of
a VLAN, the frame is accepted and assigned to that VLAN ID. Otherwise if the
port is not an untagged member of any VLAN, the frame is discarded.
The switch will only forward a frame to ports that are members (tagged or untagged)
of the VLAN to which the frame is assigned. If the port is an untagged member, the
egress frame will be stripped of the VLAN tag and forwarded as untagged.
However, if the port is a tagged member, the egress frame is forwarded as tagged.
Viewing VLAN Port Details
The VLAN Port Detail Page provides information on VLAN configured ports.
Click Device VLAN Port Detail. The VLAN Port Detail Page opens.

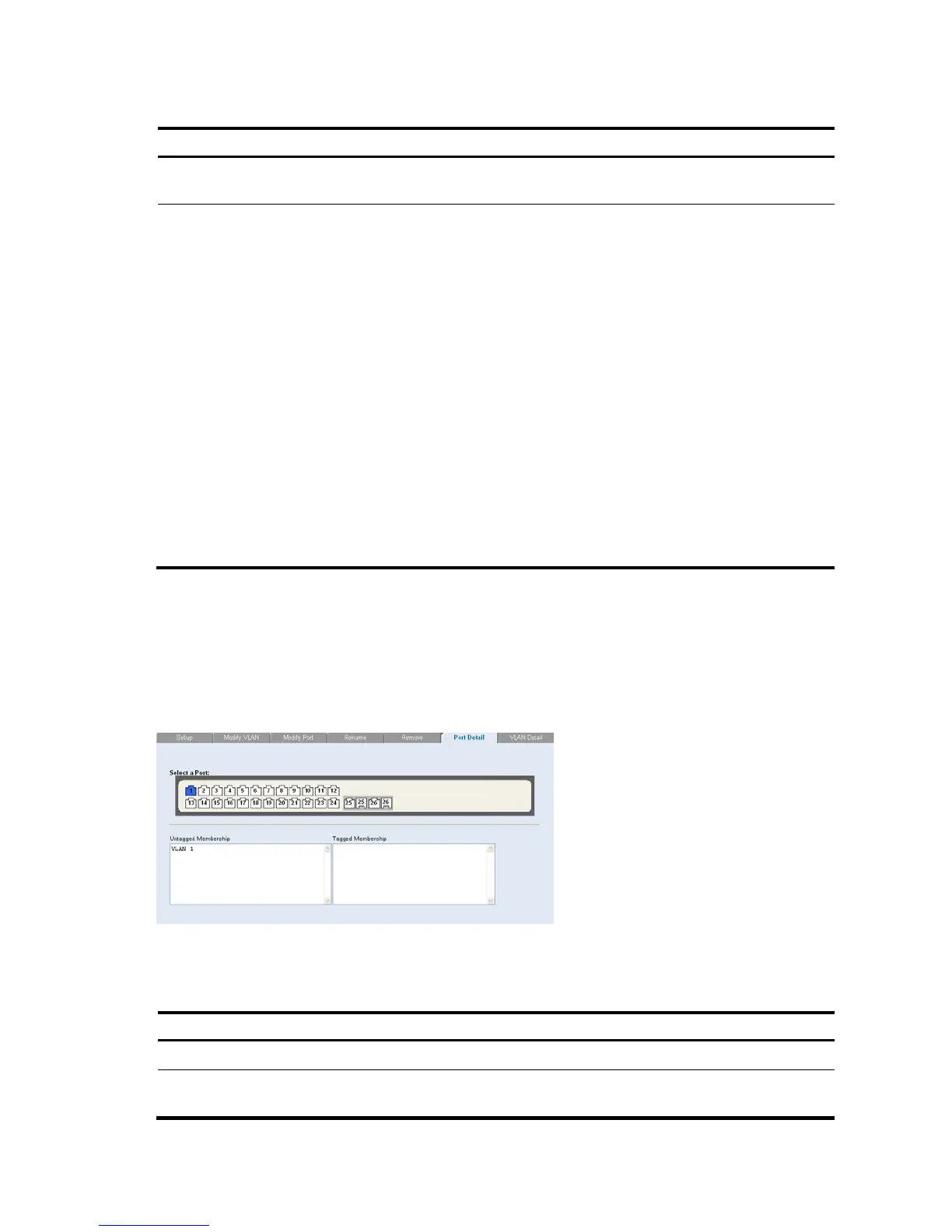

Figure 80 VLAN Port Detail Page
The VLAN Port Detail Page contains the following information:
Table 64 VLAN Port Detail Page item description
Item Descri
tion
Untagged Membership Indicates the port is an untagged member of the VLAN.
Tagged membership
Indicates the port is a tagged member of a VLAN. VLAN tagged frames are
forwarded by the interface. The frames contain VLAN information.
