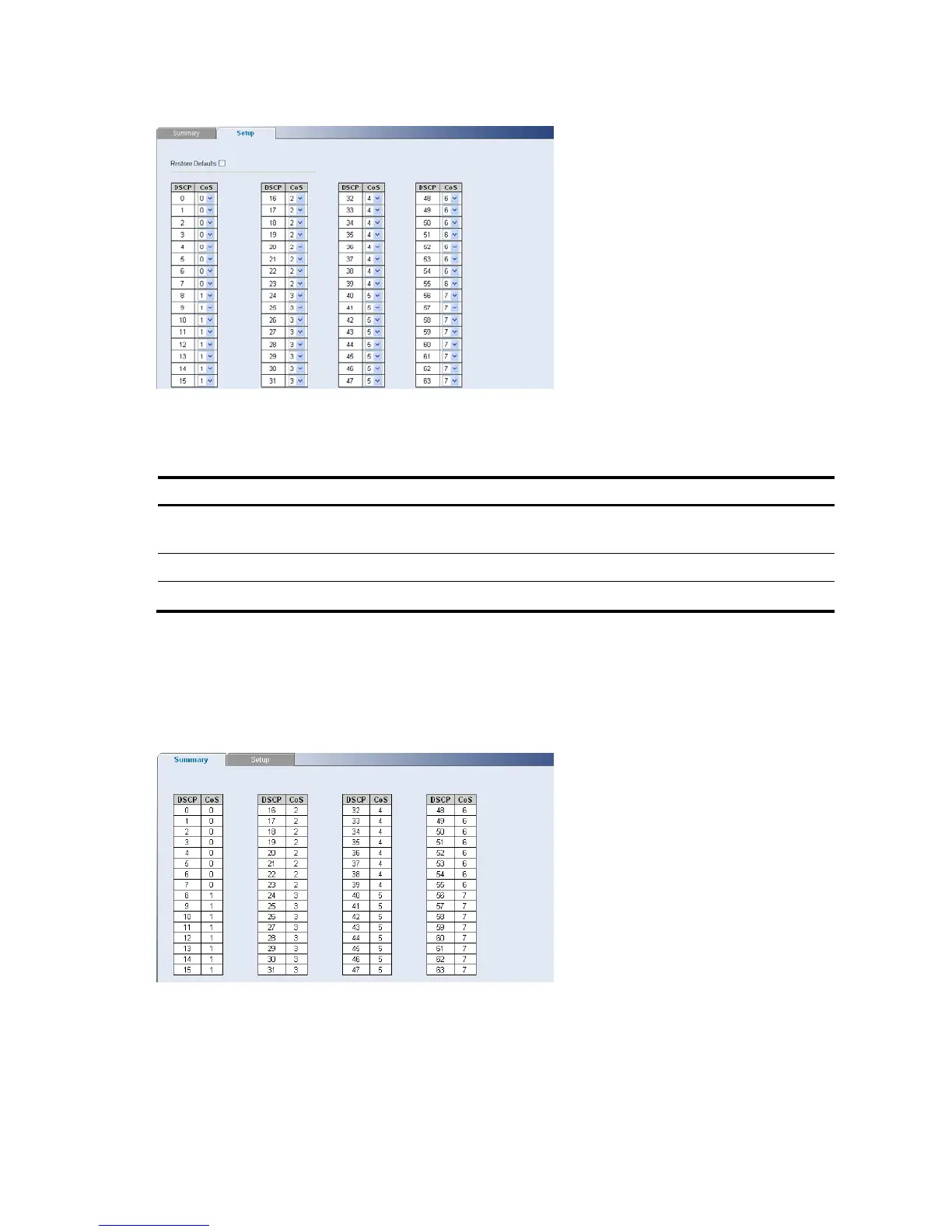

Figure 107 DSCP to Queue Setup Page
The DSCP to Queue Setup Page contains the following fields:
Table 87 DSCP to Queue Setup Page item description
Item Descri
tion
Restore Defaults
Restores the switch factory defaults for mapping DSCP values to a traffic forwarding
queue.
DSCP Displays the incoming packet’s DSCP value.
CoS Specifies the CoS value forwarding queue to which the DSCP priority is mapped.
Viewing DSCP to Queue
The DSCP to CoS Summary Page contains a table that displays the DSCP values mapped to CoS values.
Click Device QoS DSCP to Queue. The DSCP to Queue Summary Page opens.
Figure 108 DSCP to Queue Summary Page
The DSCP to Queue Summary Page contains the following fields:
