Gently open the rails (1), as shown in the following figure.

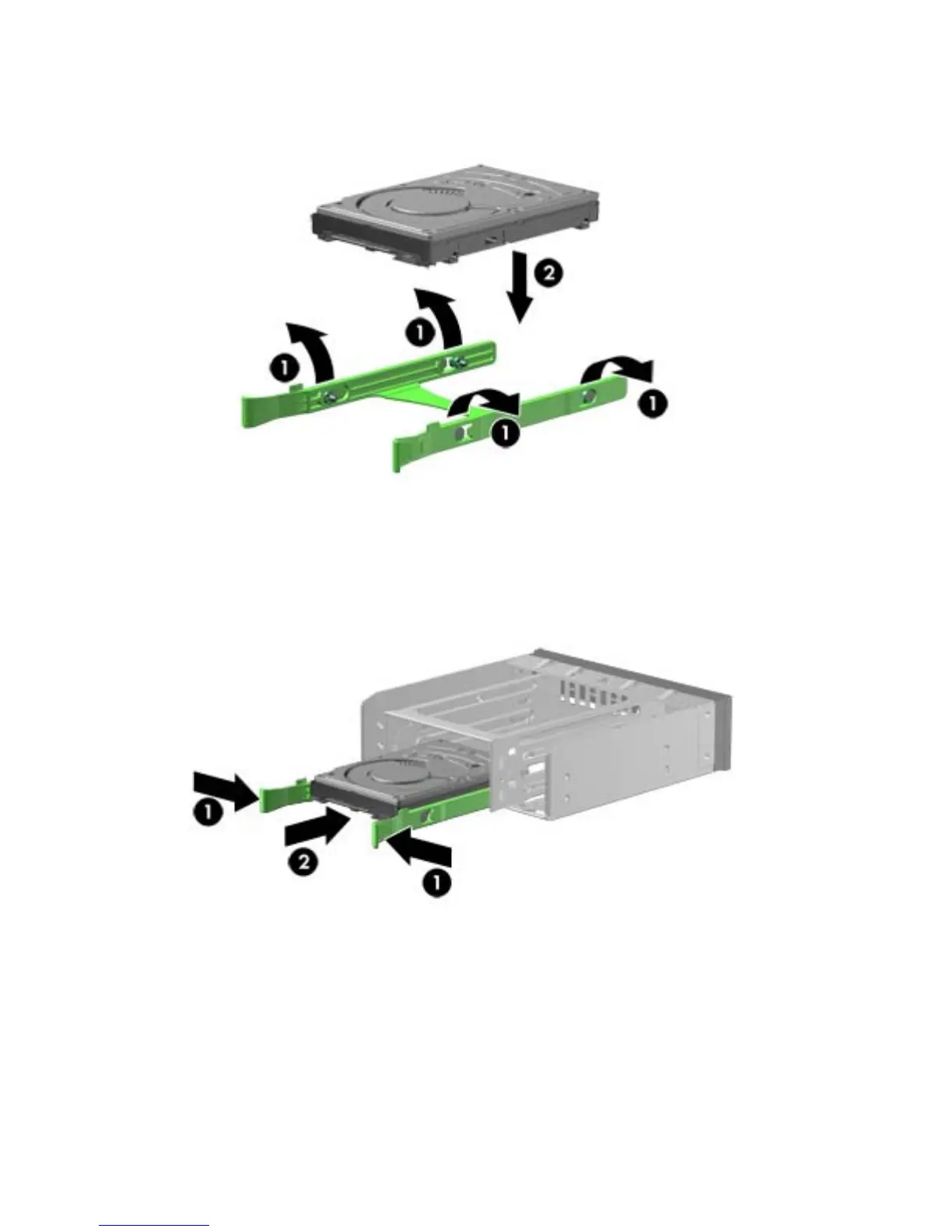

Figure 5-67 Installing the drive in the rails
8.
Lower the drive into the rails (2) as shown above. Align the four pins on the rails with the holes in
the hard drive, and then snap the rails into place.
9.
Carefully squeeze the green tabs (1) while sliding the drive with rails into the drive bracket (2), as
shown in the following figure.
Figure 5-68 Installing the drive in the optical bay bracket
