10.
Lift and hold the drive release latch at the green touch point (1) while sliding the bracket into the
optical bay (2), as shown in the following figure. When the front of the bracket is near its final
position, release the latch, but continue to slide the bracket inward until the latch closes and
engages the bracket.

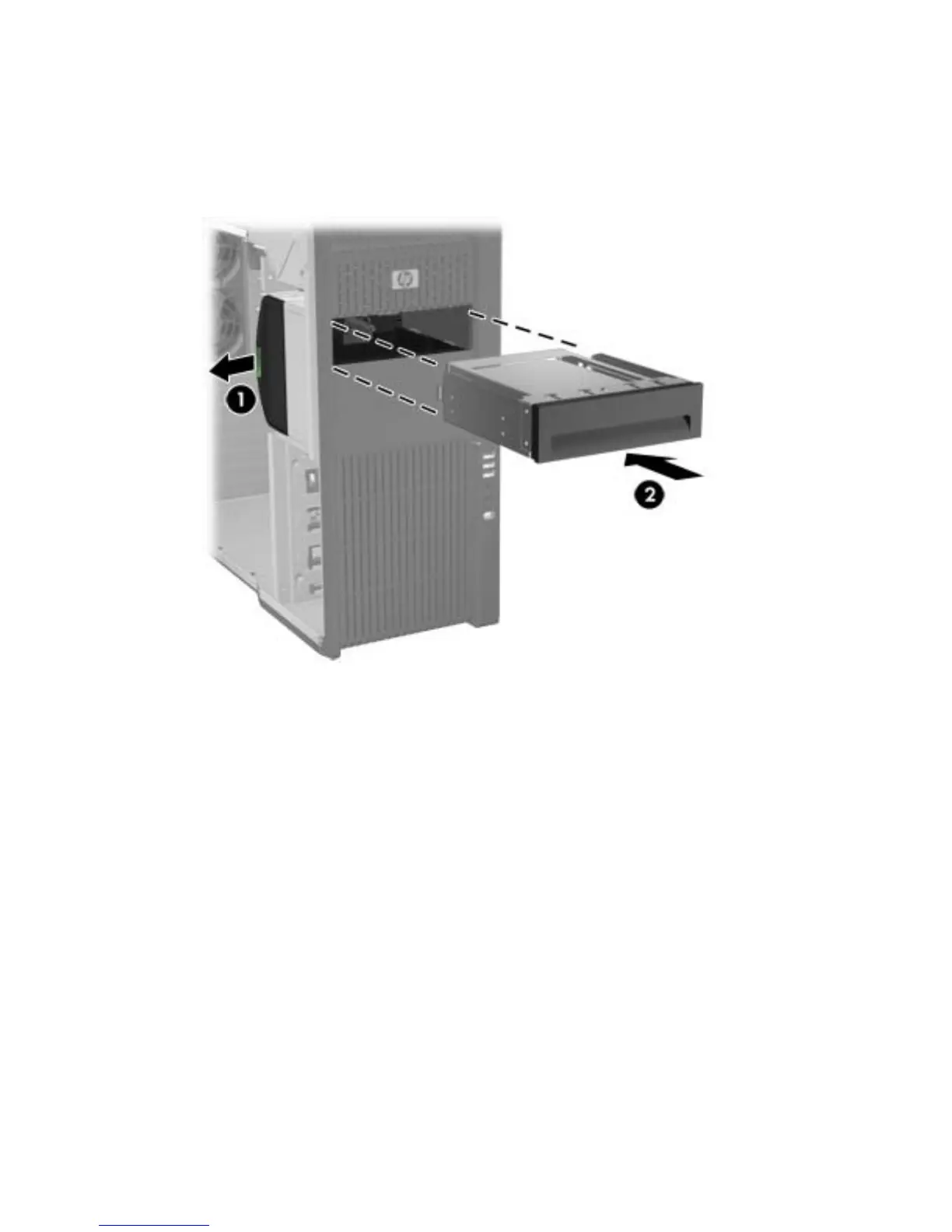

Figure 5-69 Installing the bracket in the optical bay
Repeat the steps above to install a second drive.
