7.
Disconnect the LCS cable harness connections from the system board.
a.

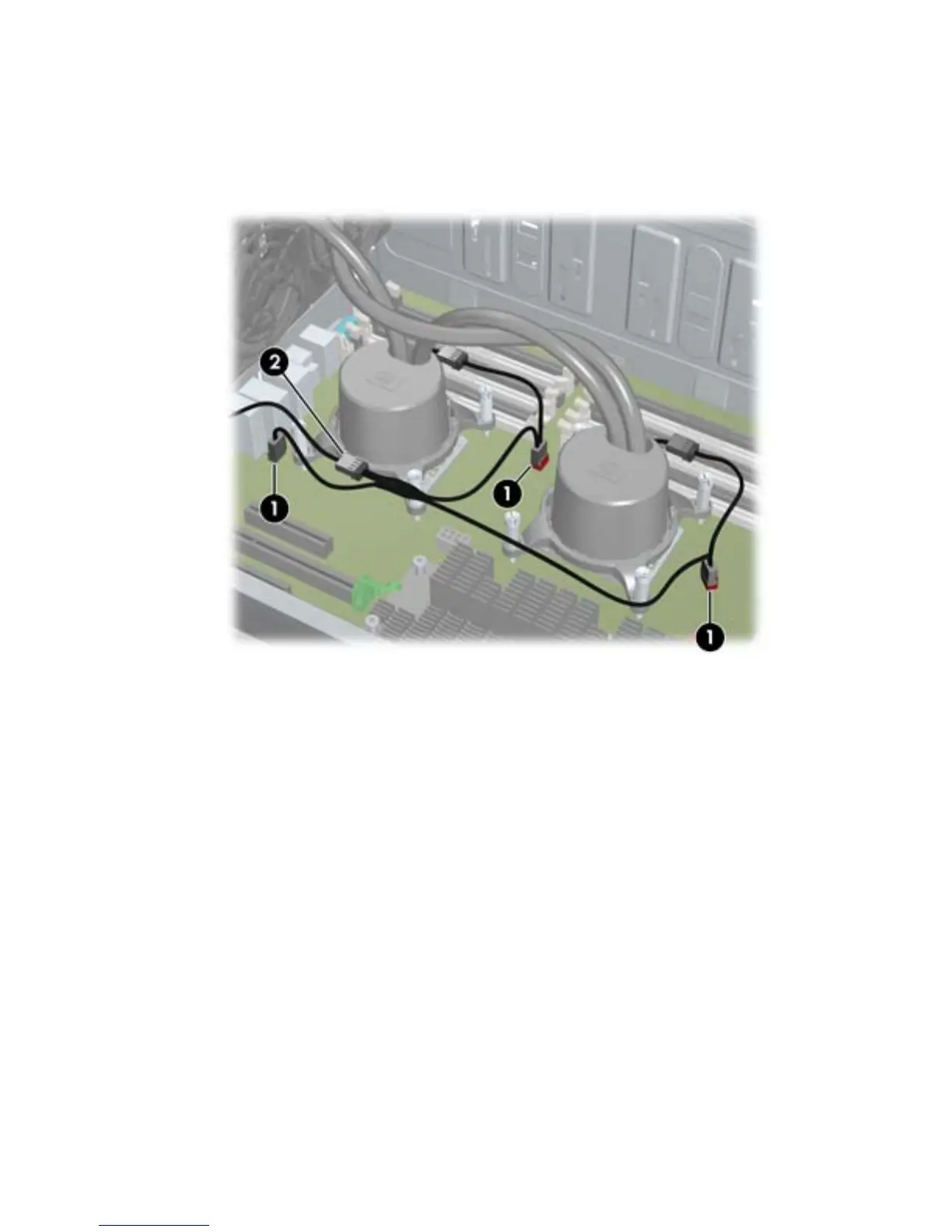

Disconnect the two cable connectors from the system board (1), as shown in the following
figure.
Figure 5-105 Disconnecting the LCS cable harness
b.
Disconnect the LCS cable harness inline connector (2), as shown in the previous figure.
180 Chapter 5 Replacing components ENWW
