HP Z800

8.
Remove the cold plate assemblies.
a.
Loosen the four LCS mounting screws (shown in the following figure) until the screws
completely disengage from the system board backplate, and then lift each assembly from its
CPU.

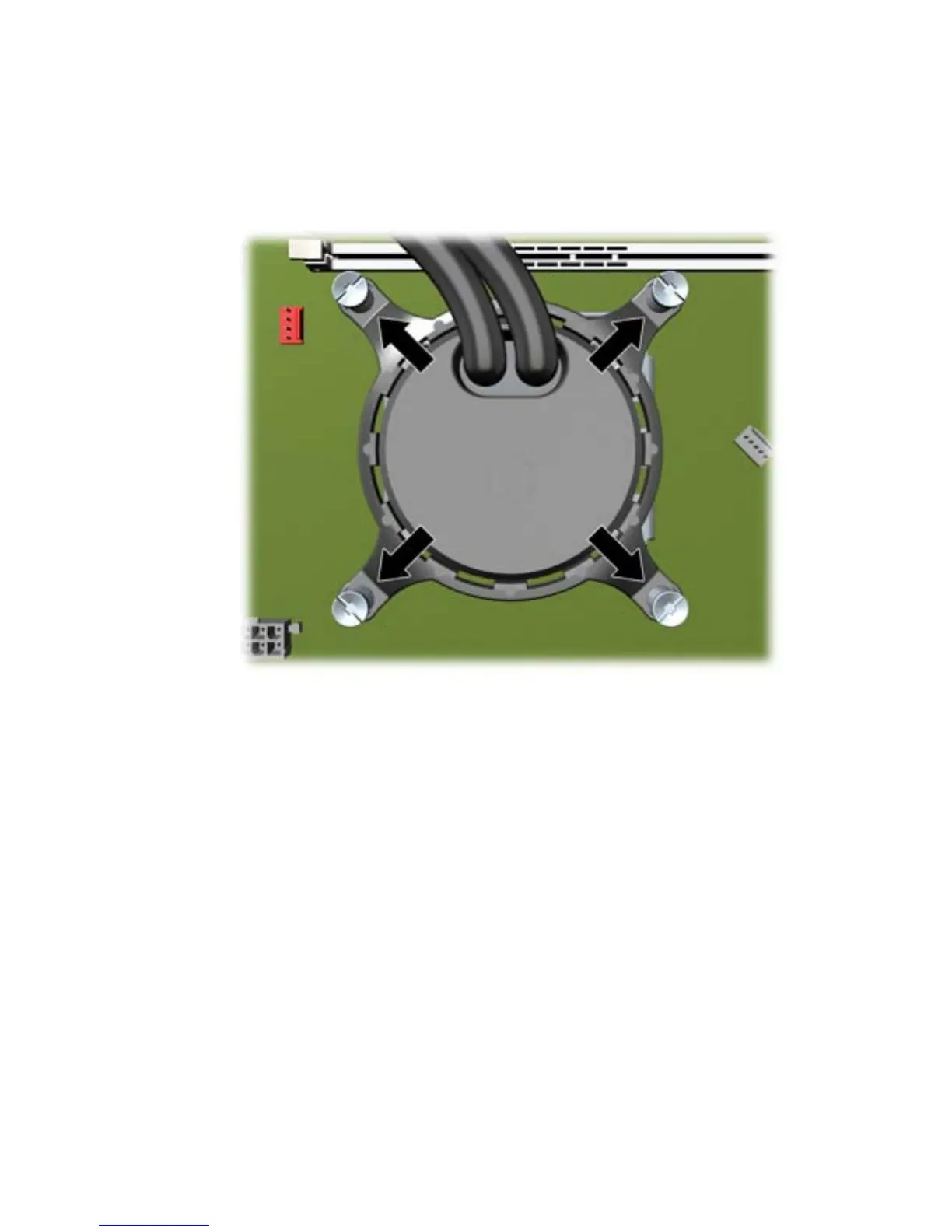

Figure 5-106 Loosening the LCS cold plate
