HP Z800

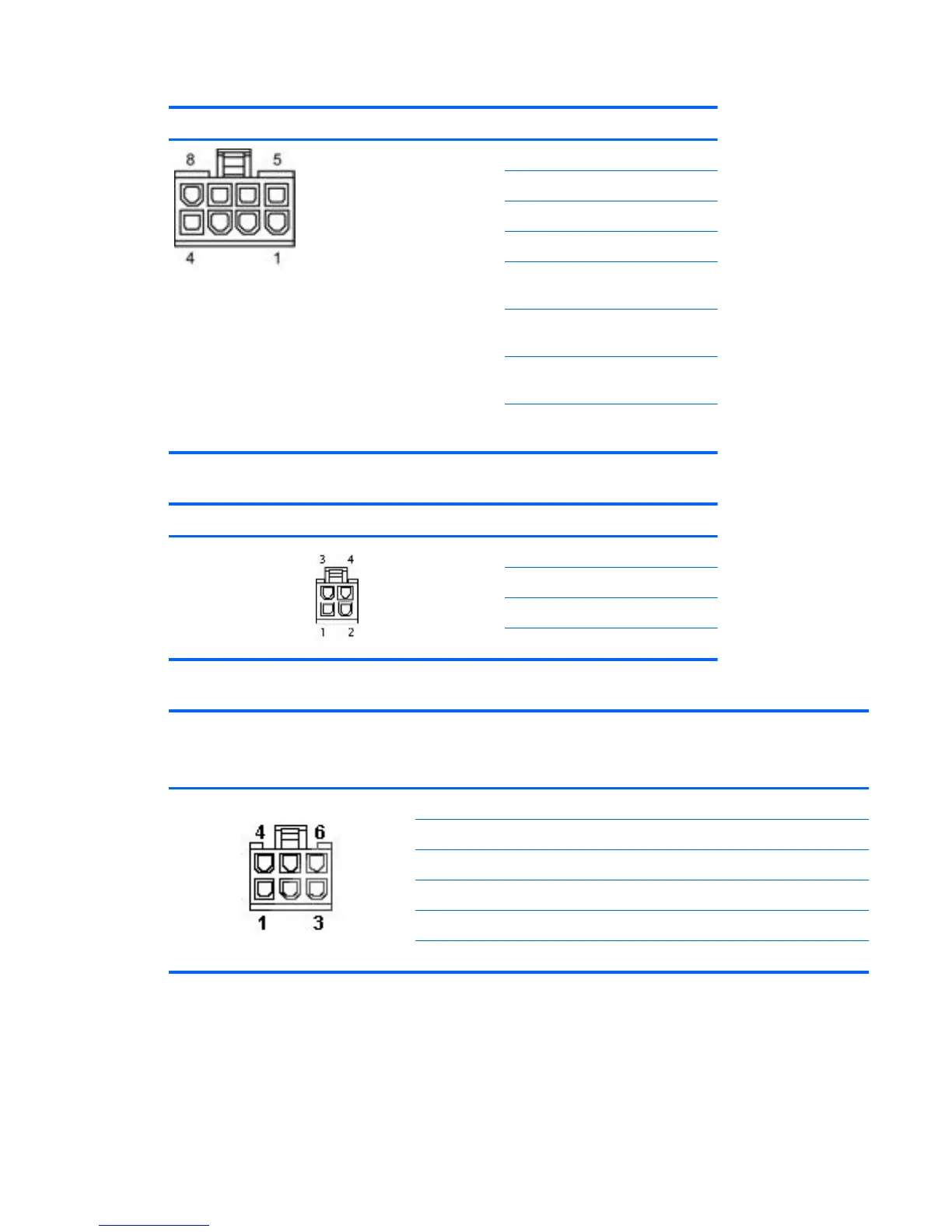

CPU power cable, P3 Pin Signal Color
1GND BLK
2GND BLK
3GND BLK
4GND BLK
5 +12V
CPU1
BLK/WHT
6 +12V
CPU1
BLK/WHT
7 +12V/
CPU0
BLK/WHT
8 +12V/
CPU0
BLK/WHT
HDD bay power cable Pin Color Signal
1BLK GND
2BLK GND
3 BLK/RED +5V
4BLK/YEL V12-D
Graphics aux. power cables, P10,
P11
Pin
Signal P10
850W
Signal
P11
850W
Signal
P10
1110W
Signal
P11
1110W
Color
1 V12-G V12-G V12-G1 V12-G2 BLK/YEL
2 V12-G V12-G V12-G1 V12-G2 BLK/YEL
3 V12-G V12-G V12-G1 V12-G2 BLK/YEL
4 GND GND GND GND BLK
5 GND GND GND GND BLK
6 GND GND GND GND BLK
ENWW 277
