HP Z800

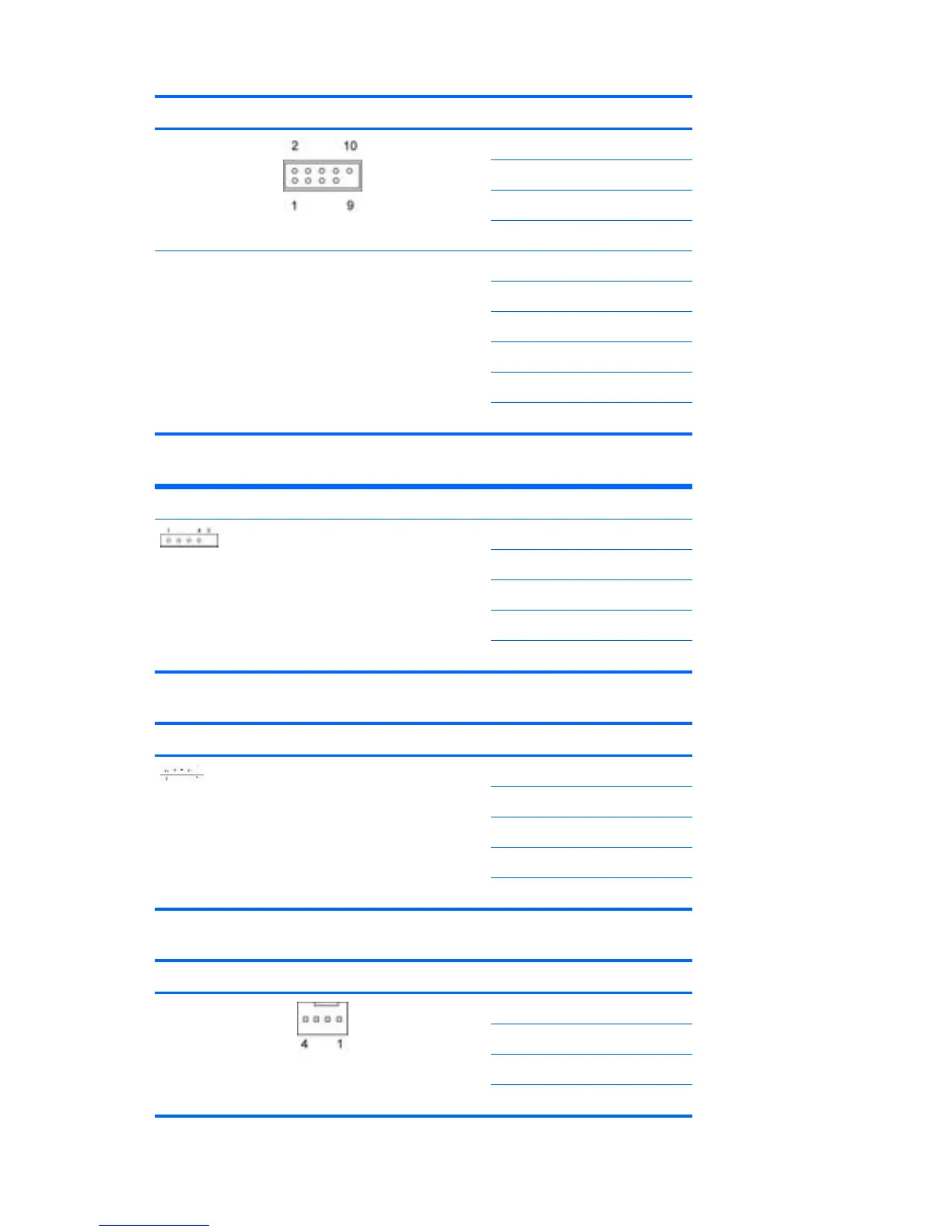

DASH/I-USB2, P26 Pin Signal
1 +5V
2 +5V
3USB8 -
4USB7 -
CAUTION: Possible equipment damage.
The 2x5 connector can be mated to either a wide 2x5
option cable connector or a narrow 1x5 option cable
connector.
To prevent damage to the connectors, always connect a
narrow 1x5 option cable connector to pins 1,3,5, and 7
only of the 2x5 connector (pin 9 is not keyed on the
connector).
5USB8 +
6USB7 +
7GND
8GND
9(not keyed)
10 Cable detect
Workstation internal I-USB1, P27 Pin Signal
1+5V
2USB6 -
3USB6 +
4GND
5Key (no pin)
Workstation CPU fans, P70, P71 Pin Signal
1GND
2 +12V
3Tach1
4PWM
5Tach2
Workstation front system fan 1, P93 Pin Signal
1Ground
2 +12V
3Tach
4CMD
