HPE Apollo 4200 Gen10 Plus Service Manual

1 Bay 1 LED Off: Normal
Flashing 1Hz: Drive predictive failure
Amber: Drive failure
2 Bay 2 LED
ItemItem DescriptionDescription Fault LED statusFault LED status

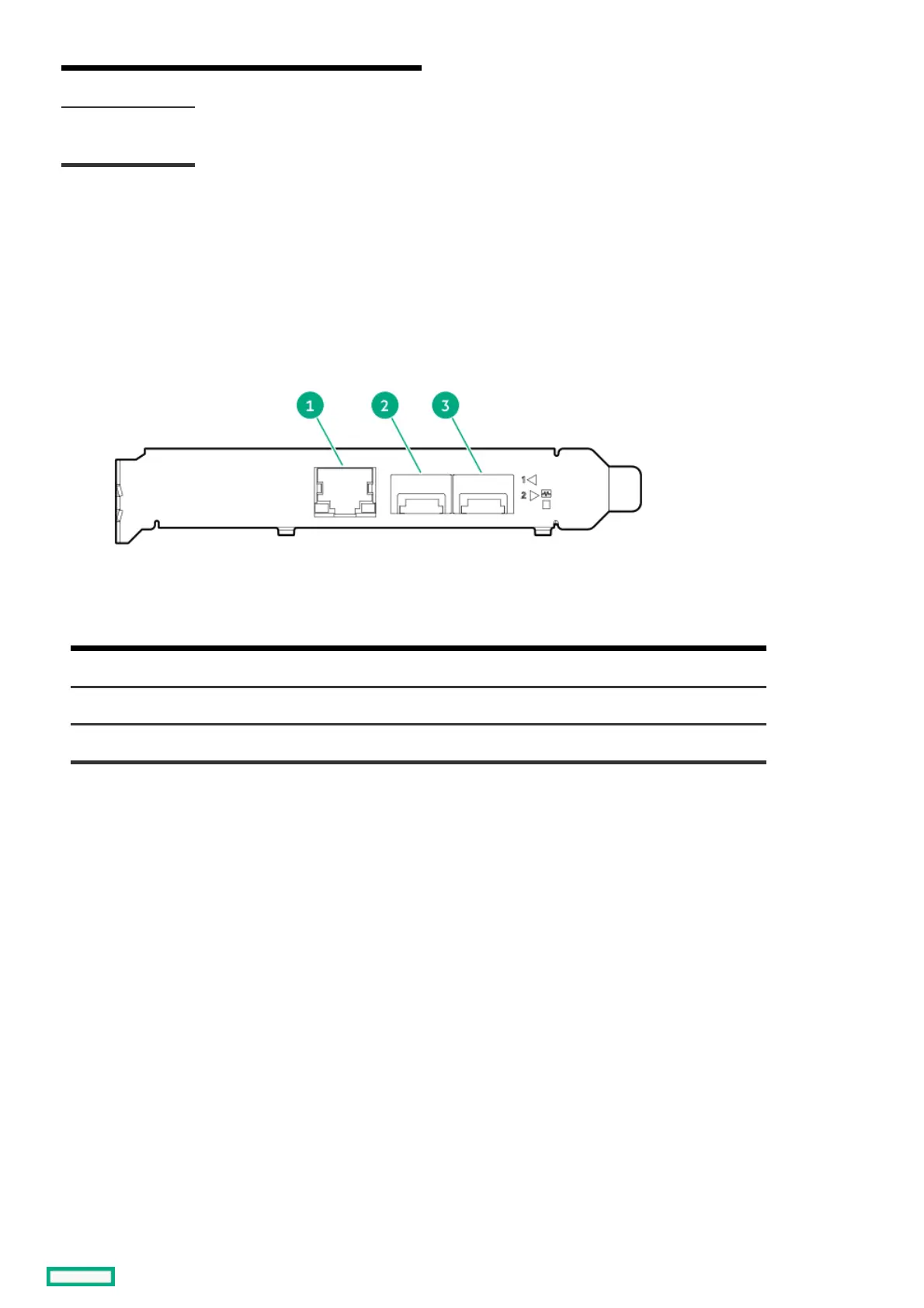

DSC-25 2-port SFP28 card ports and LEDsDSC-25 2-port SFP28 card ports and LEDs
PortsPorts
Table 1: Ports
ItemItem PortPort DescriptionDescription
1 Management port 1GbE RJ45
2 Network interface port 10/25G SFP+ based
3 Network interface port 10/25G SFP+ based
LEDsLEDs
Fan numberingFan numbering
System fan numberingSystem fan numbering
HPE Apollo 4200 Gen10 Plus Server Maintenance and Service Guide 71

HPE Apollo 4200 Gen10 Plus Specifications

General

Form Factor	2U
Number of Memory Slots	32 DIMM slots
Remote Management	HPE iLO 5
Processor	Intel Xeon Scalable Processors (3rd Gen)
Memory	DDR4
Storage	SAS, SATA, NVMe
Network	FlexibleLOM, PCIe stand-up cards
Power Supply	1600W
Drive Bays	Up to 28 SFF or 16 LFF drive bays
Expansion Slots	Up to 8 PCIe 3.0 slots
GPU Support	Yes, supports GPUs
Operating System Support	Windows Server, RHEL, SLES, VMware
