HPE Nimble Storage HF Series User Manual

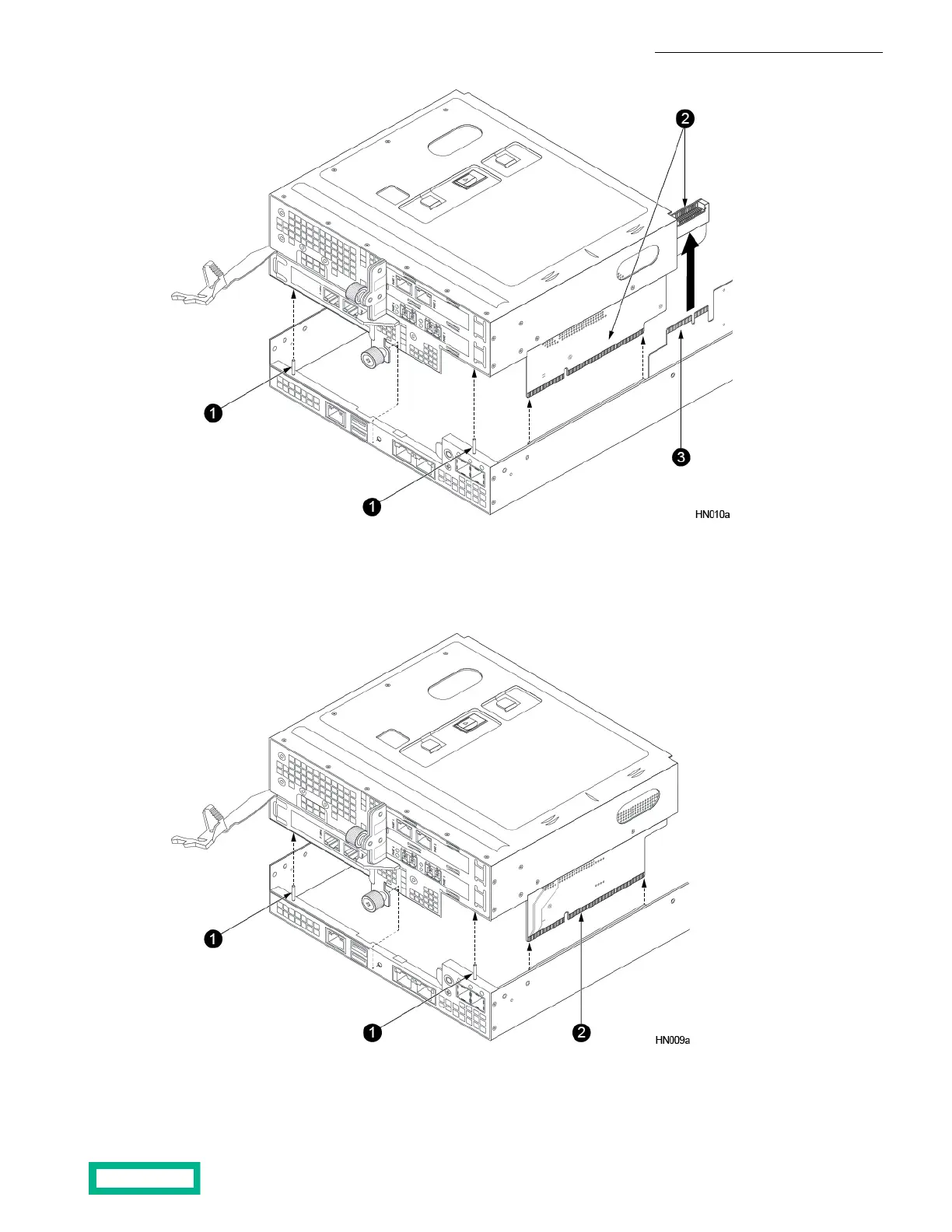

31 Bridge boardGuide pins
2 Riser card
c) For all other models: Grasp both sides of the PCIe cage and lift the cage out of the controller making sure the cage
clears the guide pins and that the underlying riser cards are properly unseated from their connectors.
21 Riser cardGuide pins
4. Insert the PCIe cage into the controller.
Maintenance Procedures 85
