10. Remove the mylar tape.

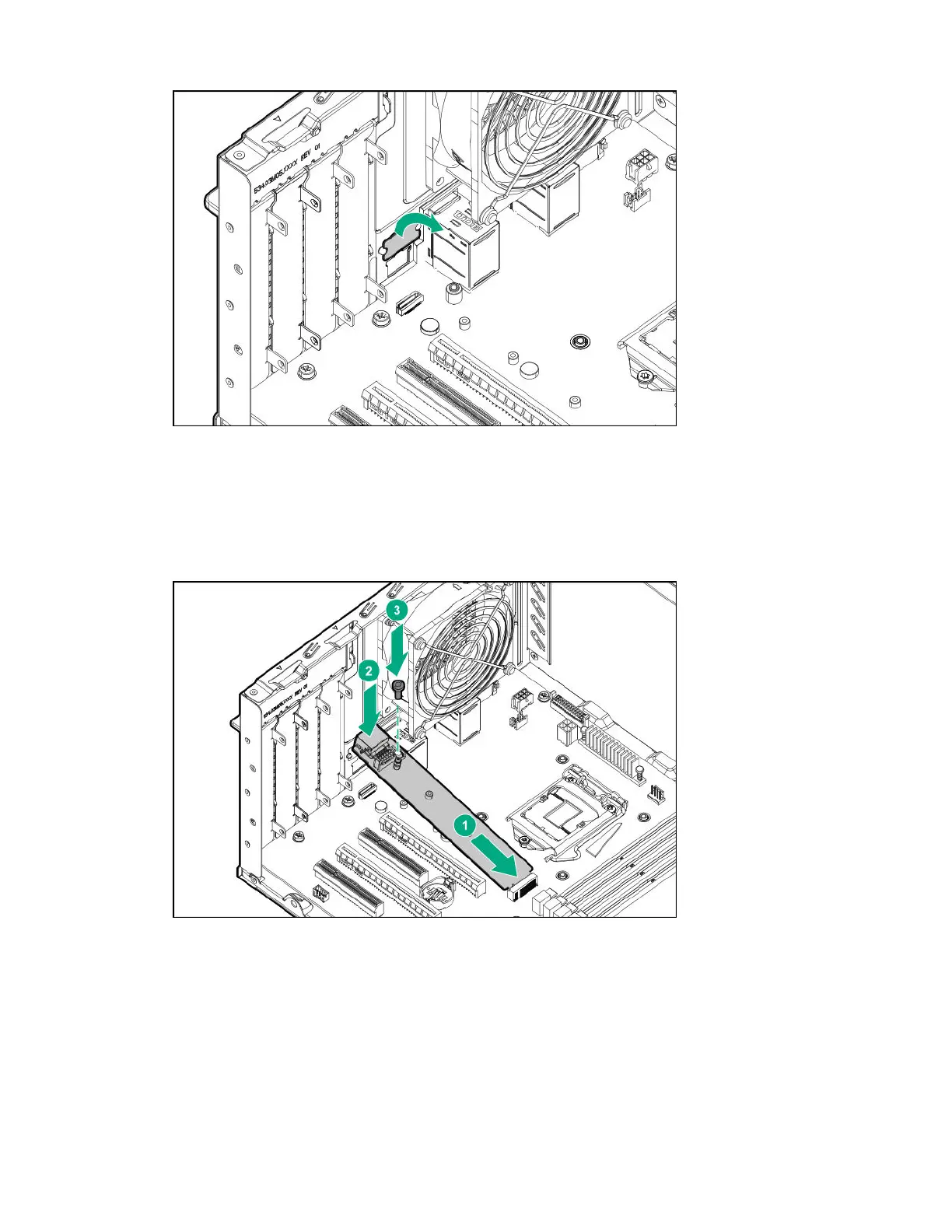

11. Install the M.2 SSD/dedicated iLO/serial port enablement board:
a.
Insert the enablement board into the M.2 SSD slot at a 45° angle.
b.
Carefully press the enablement board down to the horizontal position.
c.
Install the enablement board screw.
12. Install the enablement board stabilizer.
72
Hardware options installation
