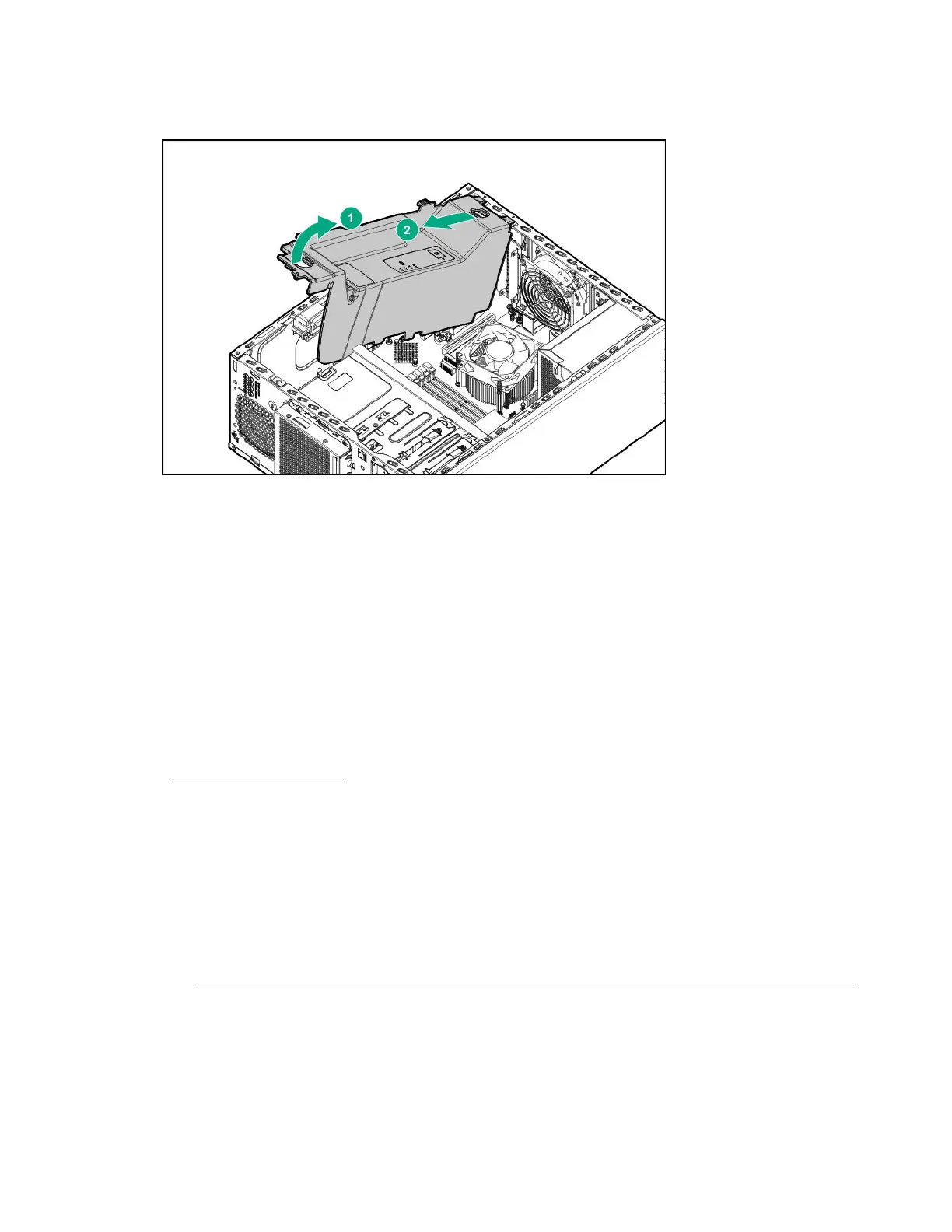

a. Remove the front end of the baffle from the chassis.
b. Remove the baffle from the slots on the rear chassis.
To replace the component, reverse the removal procedure.
Removing and replacing drives
Removing and replacing an LFF non-hot-plug drive from media drive bay
Prerequisites
Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available.
Procedure
1. Back up all server data on the drive.
2. Power down the server.
3. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
4. Disconnect all peripheral cables from the server.
5. Do one of the following:
• If the server is in tower mode: Place the server on its side with the access panel facing up.
• If the server is in rack mode, do one of the following:
36 Removal and replacement procedures
