◦ Extend the server from the rack.
◦ Remove the server from the rack.
5. Remove the front bezel.
6. Remove the access panel.
7. If installed, remove the air baffle.

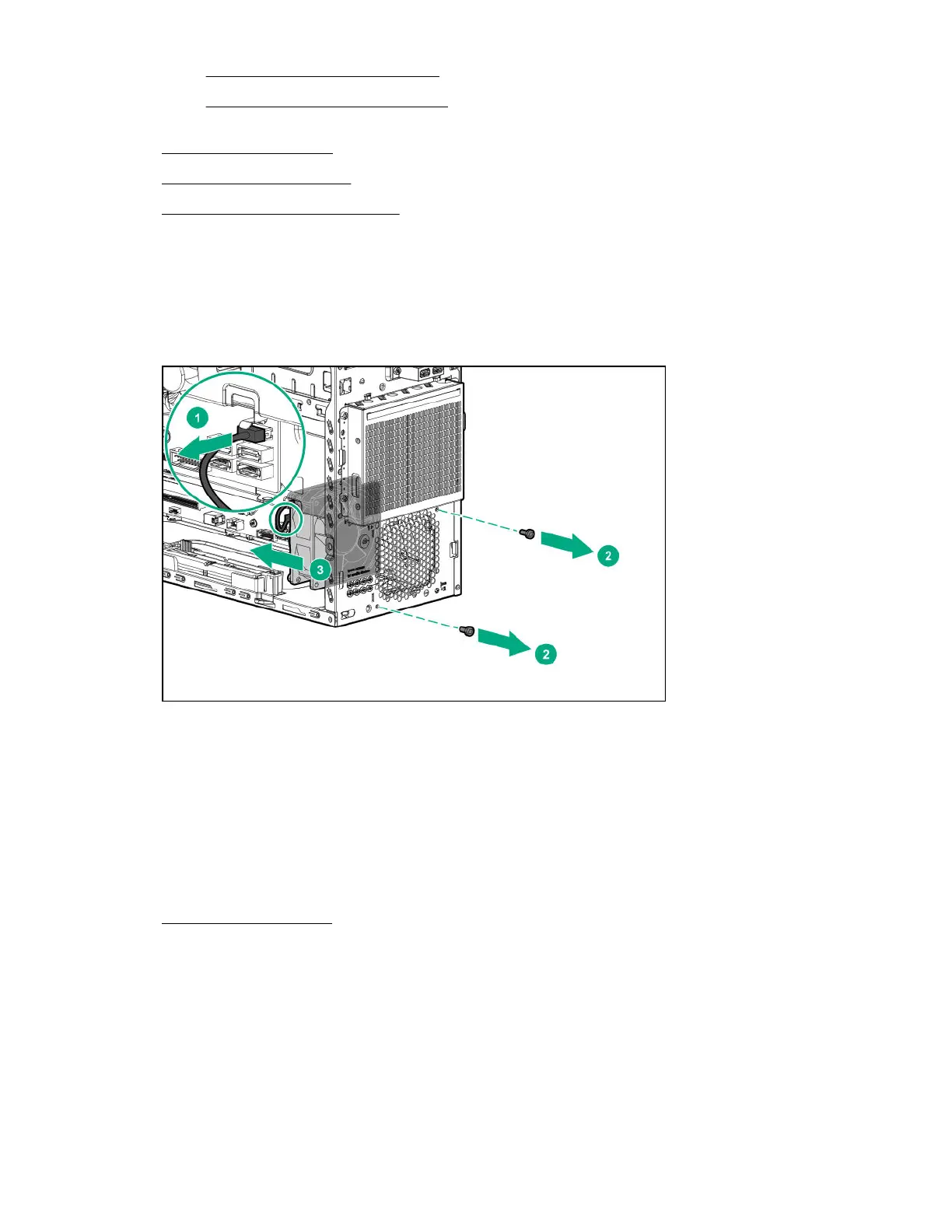

8. Remove the PCI fan module:
a. Disconnect the fan cable.
b. Remove the cable from the metal tab.
c. Remove the PCI fan.
To replace the component, reverse the removal procedure.
Removing and replacing the system fan
Prerequisites
Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available.
Procedure
1. Power down the server.
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Disconnect all peripheral cables from the server.
4. Do one of the following:
58 Removal and replacement procedures
