7. If installed, remove the air baffle.

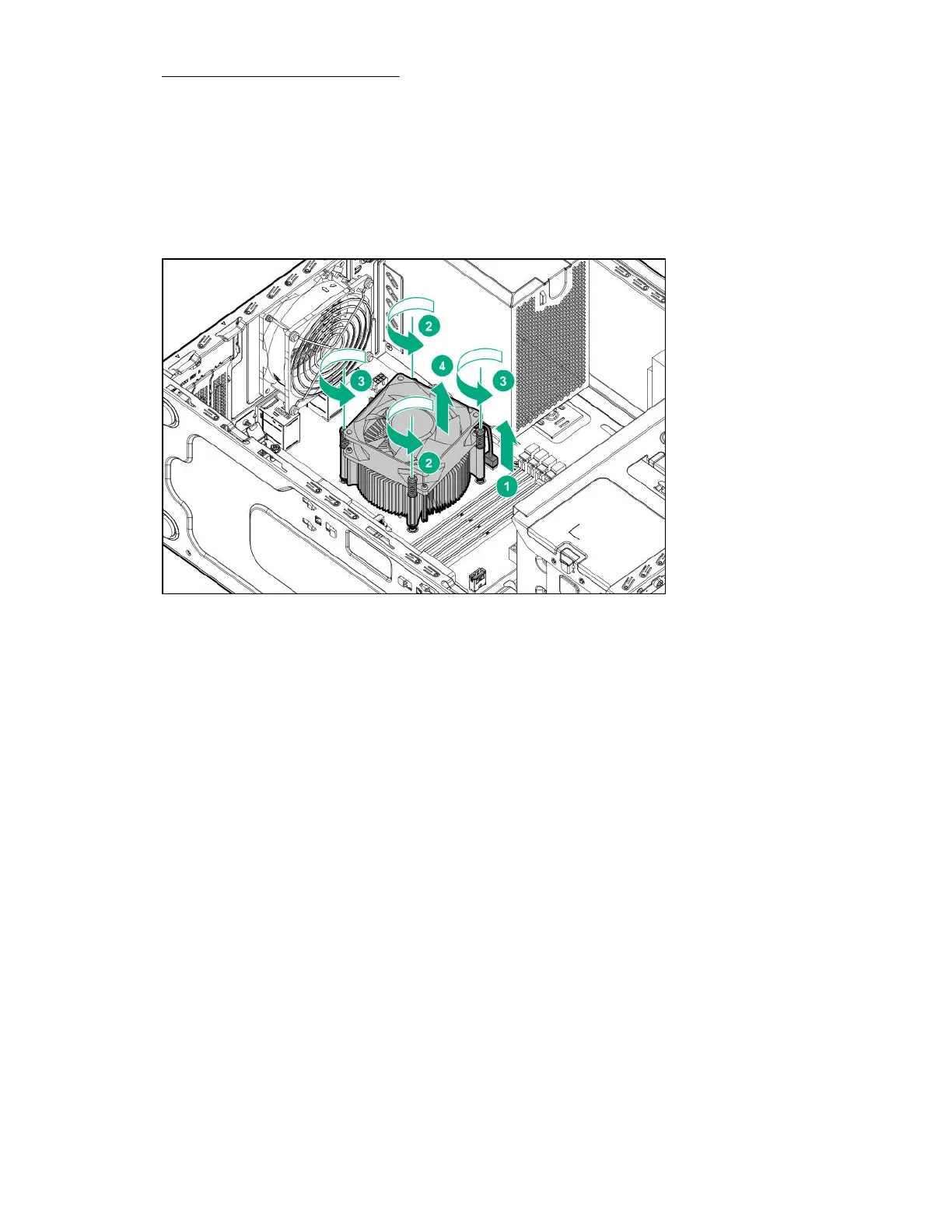

8. Remove the heatsink:
a. Disconnect the heatsink fan cable.
b. Loosen one pair of diagonally opposite screws halfway, and then loosen the other pair of screws.
c. Completely loosen all screws in the same sequence.
d. Remove the heatsink from the processor backplate.
Replacing a heatsink
Prerequisites
Before you perform this procedure, make sure that you have the following items available:
• Phillip screwdriver
• Alcohol swab
• Thermal grease
Procedure
1. Clean the old thermal grease from the processor with the alcohol swab. Allow the alcohol to
evaporate before continuing.
2. Remove the thermal interface protective cover from the heatsink.
Removal and replacement procedures 63
