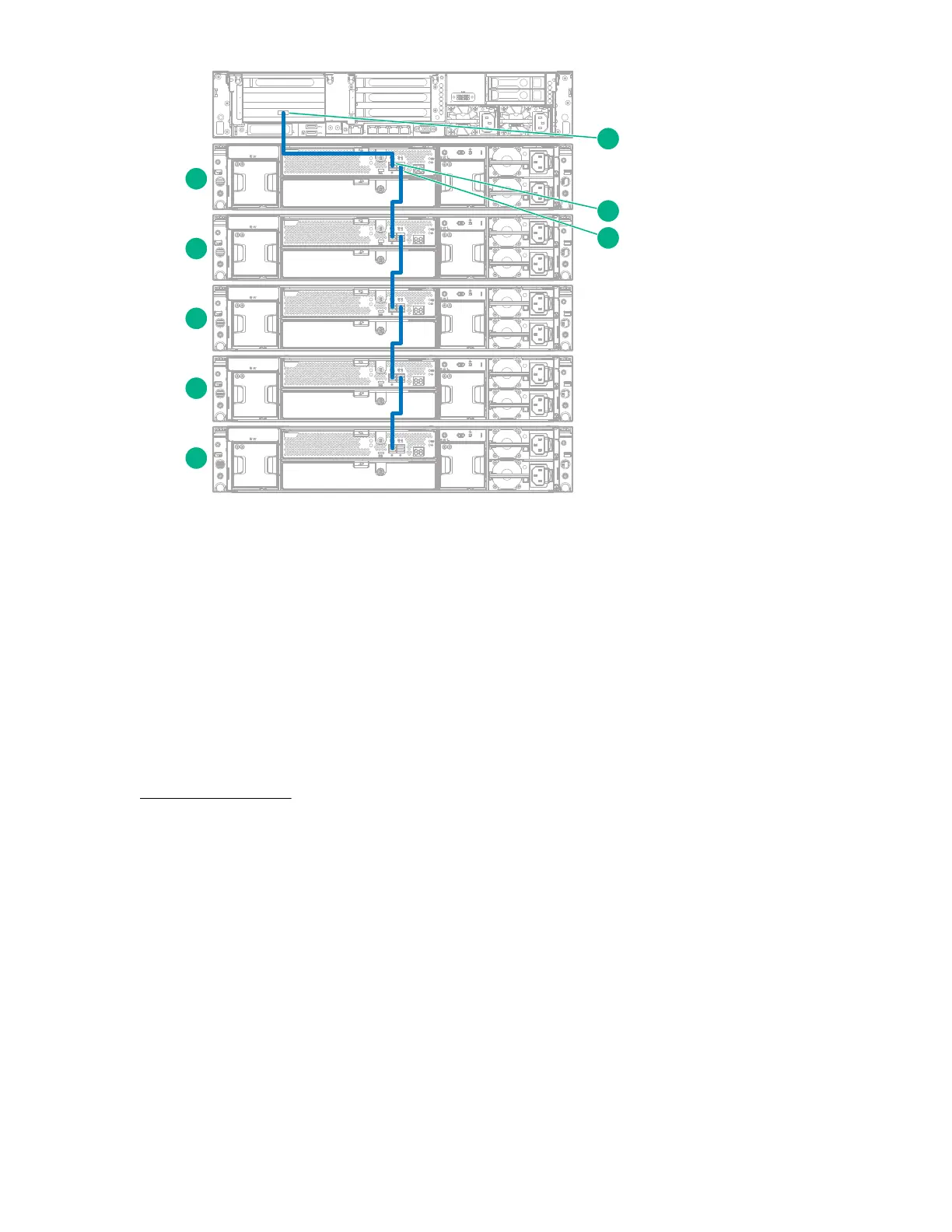

Figure 18: Cabling showing five Capacity Upgrade Kits below the server
1 JBOD1 2 JBOD2
3 JBOD3 4 JBOD4
5 JBOD5 6 SAS connector on RAID controller on
head unit
7 P1 connector on I/O module (SAS IN from
head unit or previous expansion shelf)
8 P2 connector on I/O module (SAS OUT to
next expansion shelf)
More information
StoreOnce full license on page 37
Hardware overview reference section 75
