HPE STOREONCE 5500

1
2
3
4
1
5
6
4
4
1
iLO
PS2
PS1
21

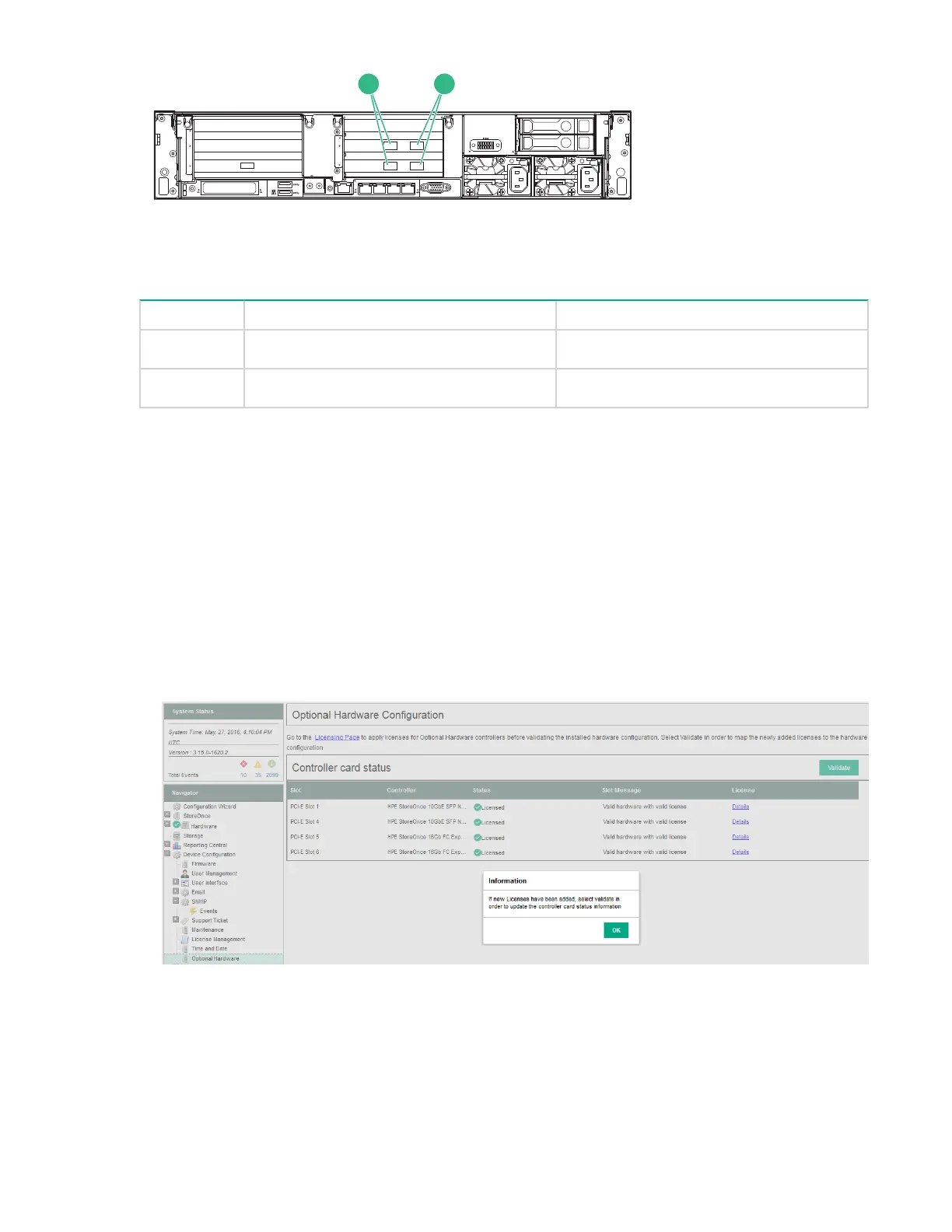

Figure 21: FC cards
8 Gb FC card 16 Gb FC card
1 Port 1 Port 2
2 Port 2 Port 1
Viewing Optional Hardware configuration
If adding optional hardware after installation, refer to the StoreOnce Optional Hardware Installation and
Configuration Guide for details about installing and licensing the cards.
To view the Optional Hardware options that is currently installed:
Procedure
1. Go to Device Configuration and select Optional Hardware.
2. Click OK at the prompt and look at the Controller card status section.
3. In the following example two 10 GbE SFP network and two 16Gb FC cards have been installed,
licensed and validated.
78 Viewing Optional Hardware configuration
