HPE STOREONCE 5500

◦ For connection to Ethernet, the 10 GbE network cards must be installed, starting with slot 1, in the
slot sequence 1, 4, 5, 6.
◦ For connection to SAN, the FC cards must be installed, starting with slot 6, in the slot sequence 6,
5, 4, 1.
• SFP+ transceivers are required with the FC cards and the 10 GbE SFP cards. No additional hardware
is required for the 10 GbE Base-T cards.
NOTE:
The HPE StoreOnce 3100 System does not support the addition of PCIe cards.
1
2
3
4
1
5
6
4
4
1
iLO
PS2
PS1
1 2 3 4

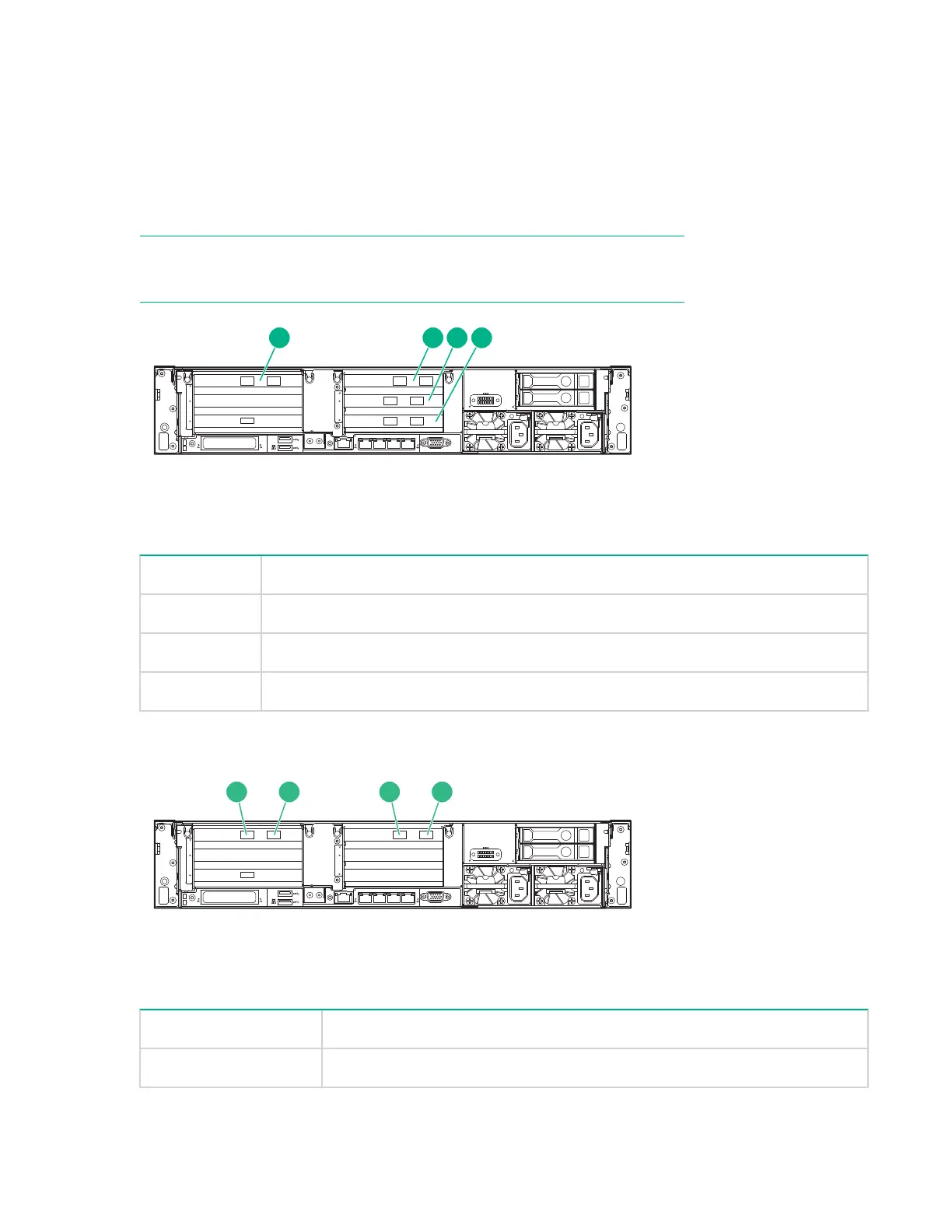

Figure 19: Rear view of HPE StoreOnce 5100 System, highlighting additional PCIe slots
1 Slot 1, populated with 10 GbE card
2 Slot 4, populated with 10 GbE card
3 Slot 5, populated with FC card
4 Slot 6, populated with FC card
Port numbering on PCI cards
1
2
3
4
1
5
6
4
4
1
iLO
PS2
PS1
21 21
Figure 20: 10 GbE cards
1 Port 2 on 10 GbE cards
2 Port 1 on 10 GbE cards
Port numbering on PCI cards 77
