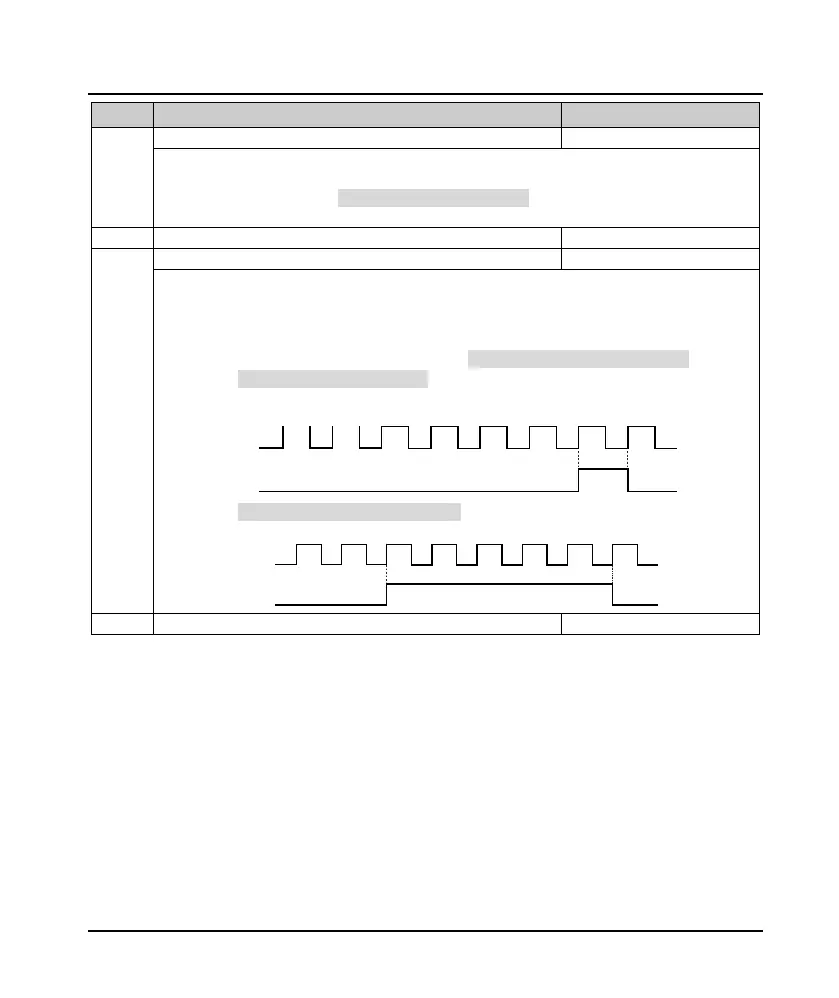

Shenzhen Hpmont Technology Co., Ltd. Chapter 7 Detailed Function Introduction
HD09-S Series User Manual V1.1 - 57 -
Ref. Code Function Description Setting Range [Default]
F15.36 Set running time 0 - 65535 [0h]
When running total time of the inverter reaches F15.36, DO or relay will output 500ms width pulse guiding
signal.
Output terminal / relay selection No.21 function (set run time arrival), the inverter controls the correct status
output according to the internal flag.
F15.37 Setted count value reach preset F15.38 - 9999 [0]
F15.38
Specified count value reach preset
0 - F15.37 [0]
F15.37 define the number of pulses entered by the DI terminal (function No.51). The DO or relay outputs an
indication signal and the external counter is automatically cleared.
F15.38 define the number of pulses entered by the DI terminal (function No.51). The DO or relay outputs an
indication signal until the set count value is reached.
Example: F15.37 is set to 7, F15.38 is set to 3, DI1 is set as counter trigger signal input (F15.00 = 51).
DO is set to set the counter arrival (F15.19 = 23). When DI1 inputs the 7th pulse, DO outputs an indication
signal. When DI1 inputs the 8th pulse, the DO output signal returns to low level, as shown in the following
figure.
DO is set to the specified counter arrival (F15.19 = 24). When DI1 inputs the third pulse, DO outputs an
indication signal until the set count reaches 7, as shown in the following figure.
F15.43 The output terminal delay 0.0 - 100.0 [0.0s]
DI1
1 2 3 4 5 6 7 8
DO
DI1
1
2 3 4 5 6 7
8
DO
