hpmont HD09-S Series User Manual

Chapter 7 Detailed Function Introduction Shenzhen Hpmont Technology Co., Ltd.
- 56 - HD09-S Series User Manual V1.1

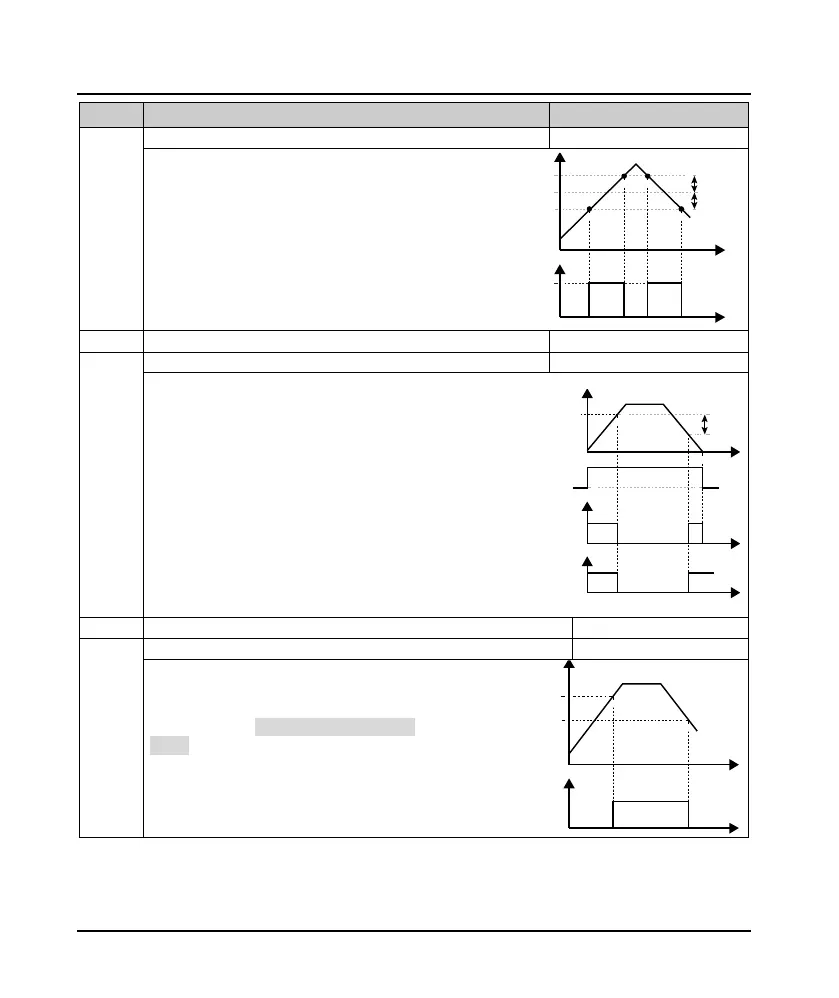

Ref. Code Function Description Setting Range [Default]
F15.27 Frequency reach (FAR) width detection 0.00 - 100.00 [2.50Hz]
When the output frequency of converter is within plus
or minus detection width of setting frequency (right
diagram Fset). DO output pulse signal is shown in the
picture on the right.
F15.28
Zero-frequency signal detection value
0.00 - F00.08 [0.00Hz]
F15.29 Zero frequency 0.00 - F00.08 [0.00Hz]
F15.28 and F15.29 define the zero-frequency output
control function.
As shown on the right.
F15.31 FDT electrical level 0.00 - F00.08 [50.00Hz]
F15.32
FDT delay
0.00 - F00.08 [0.00Hz]
When the output frequency exceeds F15.31 frequency,
the DO output indicating signals, until the output
frequency drops to a certain frequency (F15.31 -
F15.32), as shown on the right.
Output
Output
Time
Time
DO
F15.27
F15.27
Fset
Fset+F15.27
Fset-F15.27
Running frequency
Zero-frequency
running output
F15.29
F15.28
Running status
Zero-frequency output
Time
Time
Time
Output frequency
F15.31
F15.31 - F15.32
Time
Time
DO
