Chapter 10 Accessories
10.1 Panel Installation Assembly
The panel installation assembly includes mounting base and extension cable.
10.1.1 Mounting Base
The panel mounting base is an accessory. If needed, please order goods.

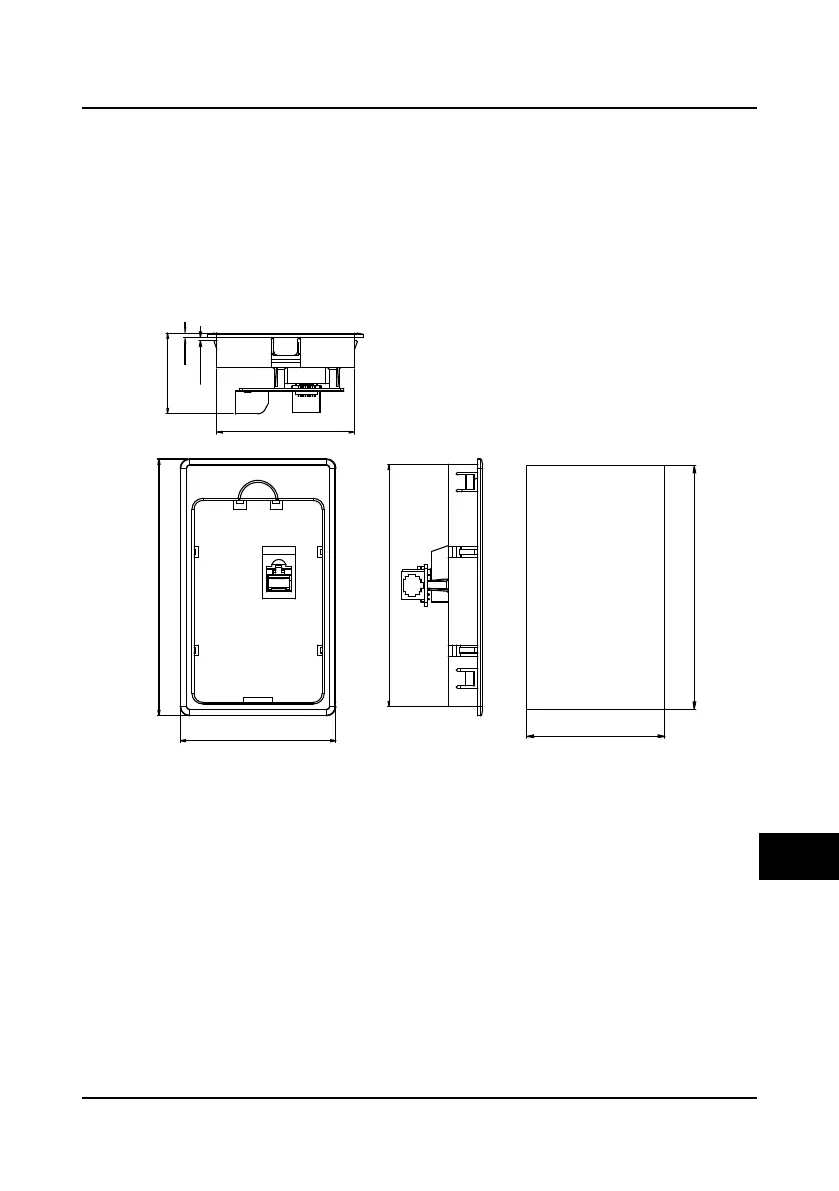

Model: HD-KMB. The mounting base and its size are shown as Figure 10-1, the unit is mm.
Figure 10-1 Mounting base and its size
10.1.2 Extension Cable
The panel extension cable is an accessory. If needed, please order goods.
The models are as follows:
• 1m extension cable to panel: HD-CAB-1M
• 2m extension cable to panel: HD-CAB-2M
• 3m extension cable to panel: HD-CAB-3M
• 6m extension cable to panel: HD-CAB-6M
134
±0.2
44.8
86
142
76
±0.2
2.5
1.8
±0.1
76.5
+0.1
0
134.5
+0.1
0
Mounting base
Mounting size
10
