Shenzhen Hpmont Technology Co., Ltd Chapter 6 Function Introduction
HD5L Series Controller User Manual ―63―
Code Name Description Range
factory setting
F02.07 Contactor close delay time 0.000
4.999
0.000s
It defines the running contactor delay release time after the run command is revoked.
F02.08 Start ramp time 0.000
2.000
0.000s
The start ramp time is the time that elevator takes to accelerate from zero to the rated speed (F00.02).
• When F02.08 is set as 0, the elevator starts from start speed directly.
F02.09 Reserved
6.2.4 Group F03 Acceleration/Deceleration Parameters
Code Name Description Range
factory setting
2
F03.01 Start Acc jerk 0.020
9.999
0.350m/s
3
3
F03.03 Deceleration speed 0.020
9.999
0.700m/s
2
3
F03.05 End Dec jerk 0.020
9.999
0.350m/s
3
F03.00－F03.05 adjust the elevator speed
via S-curve which can cushion the shock
at elevator start/stop and improve riding
comfort.
• Acc jerk: The change ratio of accelera-
tion.

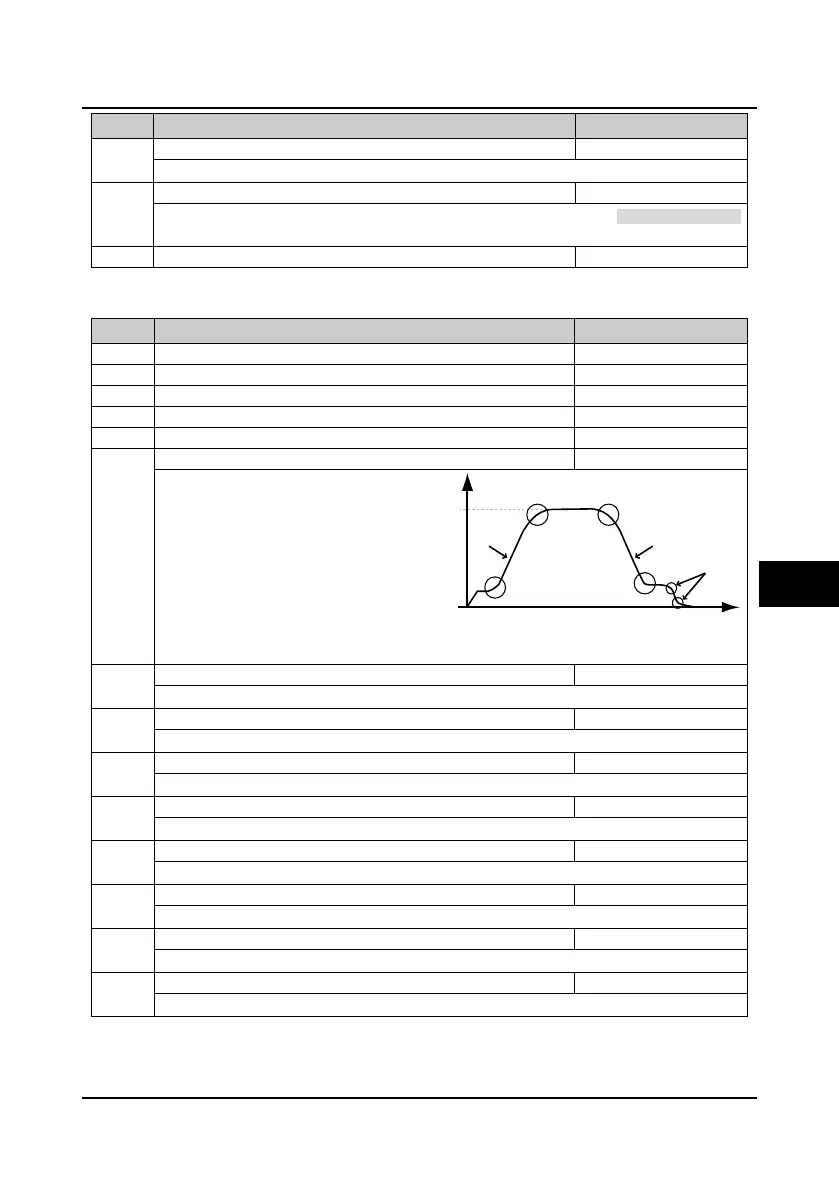

• See the right figure for the adjustment
of S-curve.
• The S-curve becomes steeper when parameter values are raised;
• The S-curve becomes slower when parameter values are decreased.
F03.06 Inspection Acc speed 0.020
9.999
0.200m/s
2
It defines the Acc speed of elevator at the inspection running mode.
F03.07 Inspection Dec speed 0.020
9.999
1.000m/s
2
It defines the Dec speed of elevator at the inspection running mode.
F03.08 Battery driven Acc speed 0.020
9.999
1.000m/s
2
It defines the Acc speed of elevator at the battery driven mode.
F03.09 Battery driven Dec speed 0.020
9.999
1.000m/s
2
It defines the Dec speed of elevator at the battery driven mode.
F03.10 Asynchronous motor auto-tuning Acc speed 0.020
9.999
0.100m/s
2
It defines the deceleration time of emergency stop.
F03.11 Asynchronous motor auto-tuning Dec speed 0.020
9.999
0.100m/s
2
It defines the deceleration time of emergency stop.
F03.12 Abnormal Dec speed 0.020
9.999
1.000m/s
2
It defines the deceleration time of emergency stop.
F03.13 Stop Dec jerk 0.020
9.999
0.350m/s
2
It defines the deceleration time of emergency stop.
Objective
speed
Speed
Time
0
F03.00
F03.03
F03.13
F03.04
F03.05F03.01
F03.02
6
