3-3
ENGINE
ADJUSTING THE VALVE CLEARANCE
Note:
·The valve clearance must be adjusted when the
engine is cool to the touch.
·Adjust the valve clearance when the piston is at
the Top Dead Center TDC) on the compression
stroke.
· Remove:
·driver seat
·passenger seat
·console

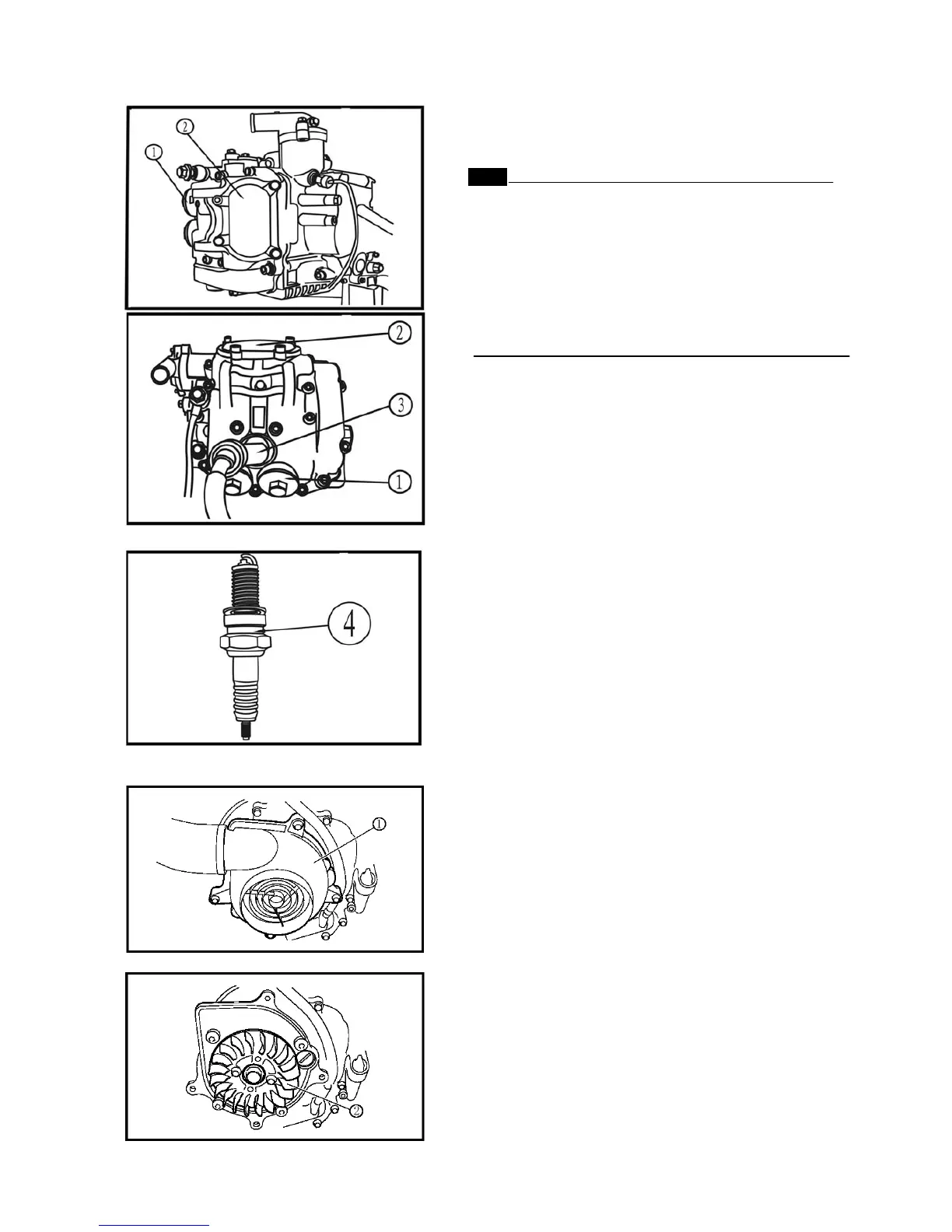

1. Remove following parts：
① Valve cover(intake)
② Valve cover(exhaust)
③ spark plug cap
④ spark plug
2. Remove the cooling fan：
① Fan cover
② Fan impeller
③ As manhole covers
To Next Page
