NOTE：
Brake fluid may erode painted surfaces or plastic
parts. Always clean up spilled fluid immediately.
WARNING:
· Use only the designed quality brake fluid:
otherwise, the rubber seals may deteriorate, causing
leakage and poor brake performance.
·Refill with the same type of brake fluid: mixing
fluids may result in a harmful chemical reaction and
lead to poor performance.
·Be careful that water does not enter the maste
r
cylinder when refilling. Water will significantly lowe
r
the boiling point of the fluid and may result in a
vapor lock.
4.Close the hood.

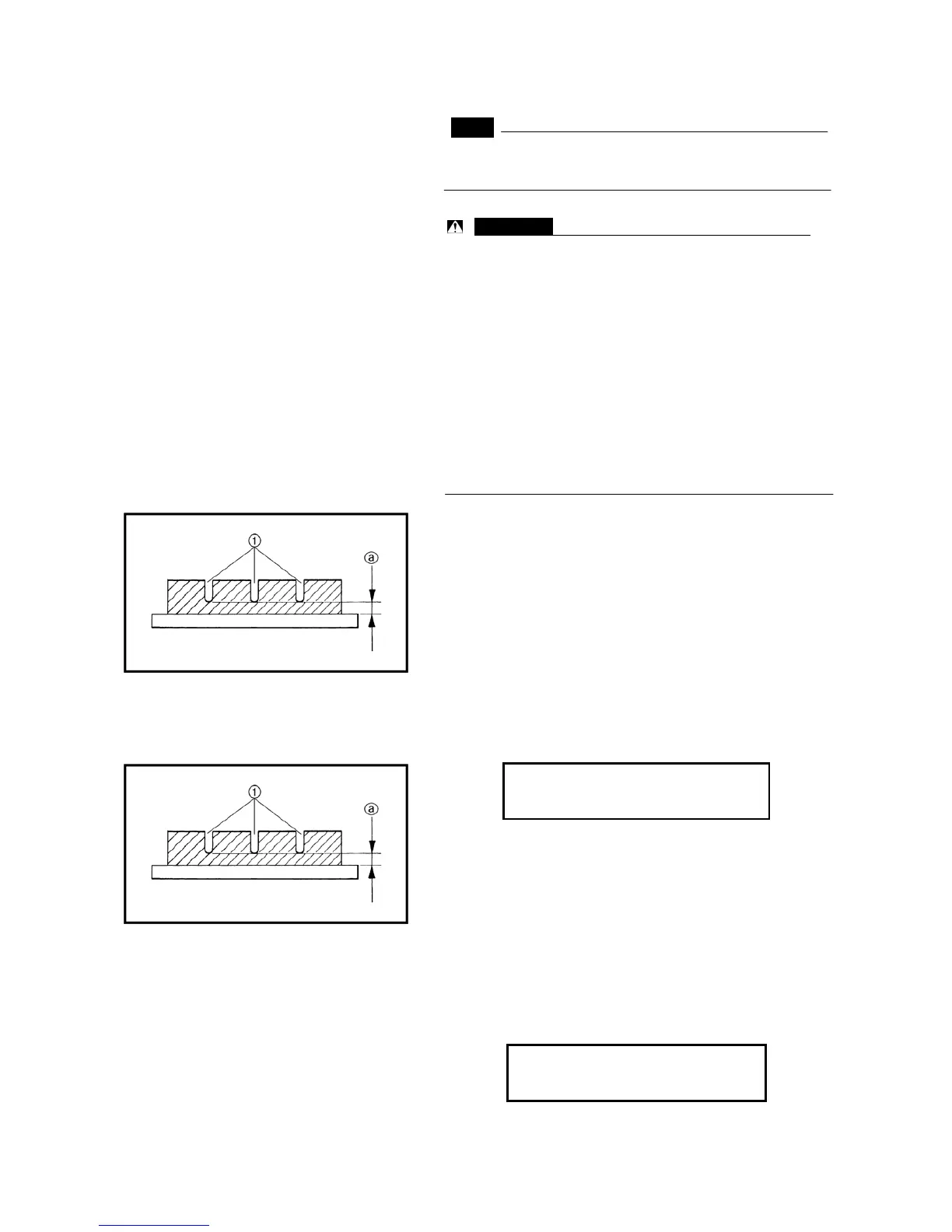

CHECKING THE FRONT BRAKE PADS
1. Remove:
·front wheels
2. Check:
·brake pads
Wear indicator groove almost disappeared → ①
Replace the brake pads as a set.
Refer to “FRONT AND REAR BRAKES” in chapter 5.
Brake pad wear limit ○a
1.5 mm (0.06 in)
3. Operate the brake pedal.
4. Install:
·front wheels
CHECKING THE REAR BRAKE PADS
1. Check:
·brake pads
Wear indicator groove almost disappeared① →
Replace the brake pads as a set.
Refer to “FRONT AND REAR BRAKES” in chapter 5.
Brake pad wear limit
○
a
1.5 mm (0.06 in)
2. Operate the brake pedal.
