3-21
Out of specification → Replace.
V-belt width
33.2 mm (1.31 in)
<Limit:> 29.9 mm (1.18 in)

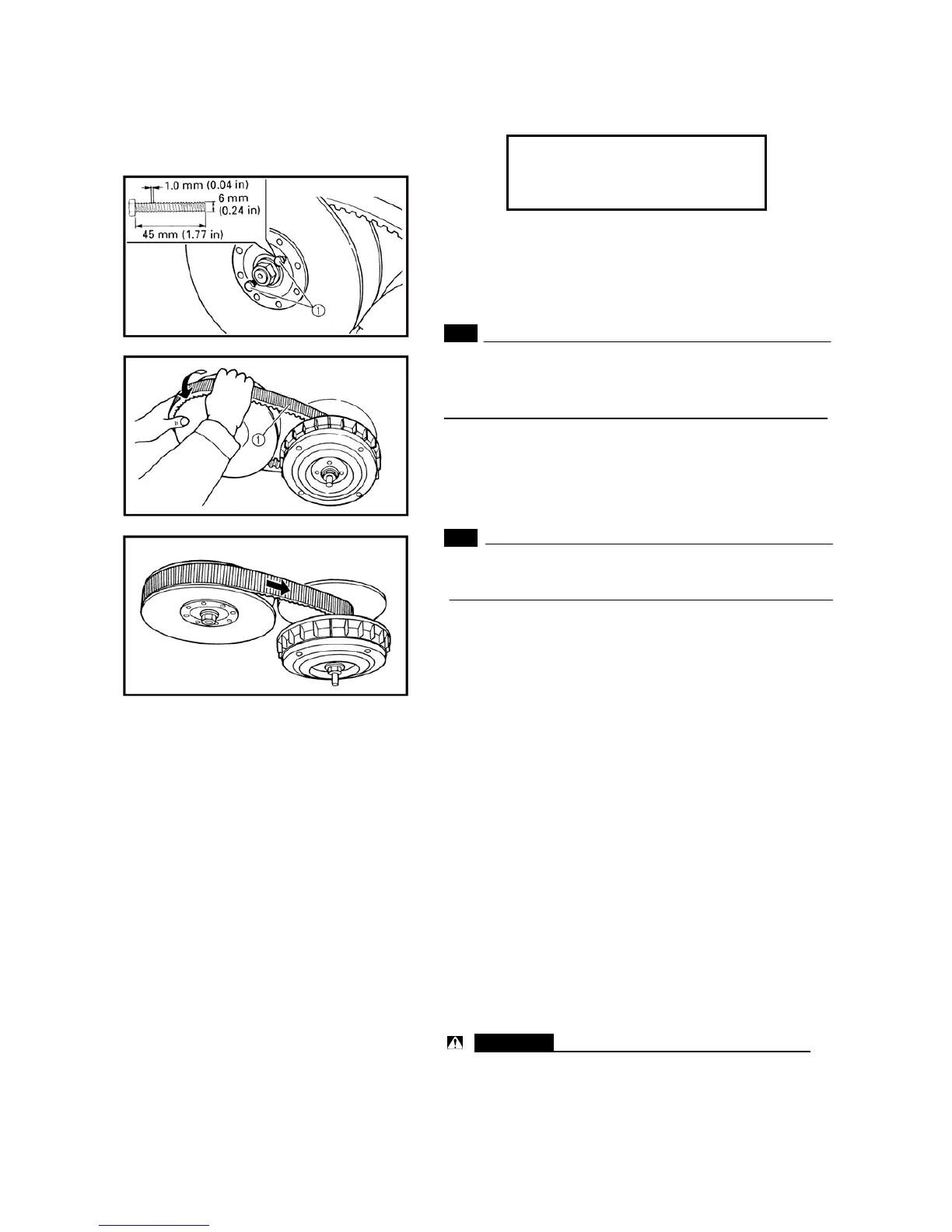

·Replace V-belt:
Install the bolts 1(90101-06016) into the secondary
fixed sheave hold.
Note:
Tightening the bolts 1 will push the secondary
sliding sheave away, causing the gap between the
secondary fixed and sliding sheaves to widen.
·Remove the V-belt 1 from the primary sheave and
secondary sheave.
·Install the V-belt.
Note:
Install the V-belt so that its arrow faces the direction
shown in the illustration.
· Remove the bolts.
2. Install:
· drive belt cover
· console
· passenger seat
· driver seat
CLEANING THE SPARK ARRESTER
1. Clean:
Tap the tailpipe lightly with a soft-face hammer o
r
suitable tool, then use a wire brush to remove any
carbon deposits from the spark arrester portion of the
tailpipe and the inner contact surfaces of the muffler..
2. spark arrester
WARNING:
·Select a well-ventilated area free of combustible
materials.
· Always let the exhaust system cool before
