Hsun HS700UTV - Engine Specifications

GENERAL SPECIFICATIONS
2-5
ENGINE SPECIFICATIONS

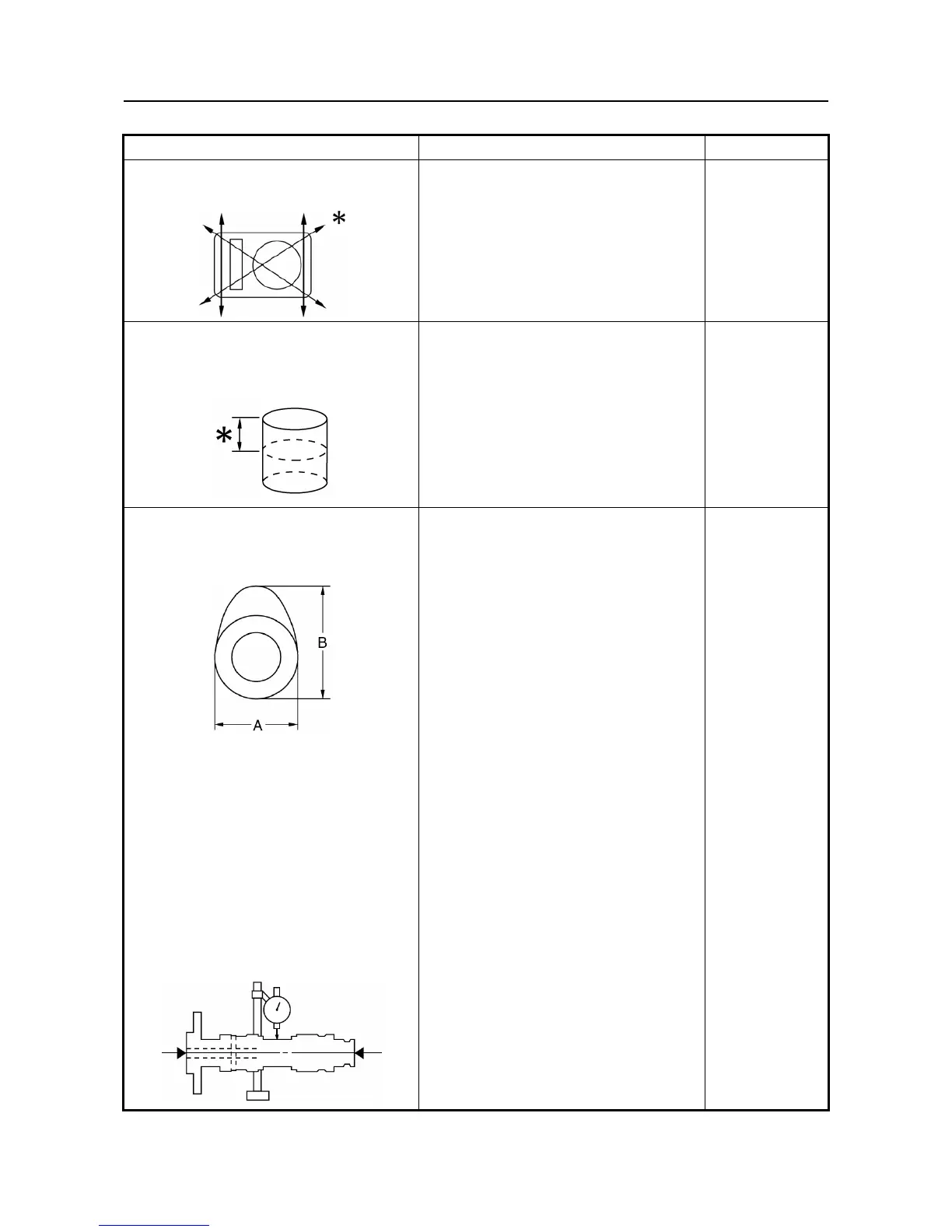

Item Standard Limit
Cylinder head
Warp limit
* ---- 0.03 mm
(0.0012 in)
Cylinder
Bore size
Measuring point
*
100.005 ~ 100.055 mm
(3.9372 ~ 3.9392 in)
50 mm (1.97 in)
100.10 mm
(3.9410 in)
----
Camshaft
Drive method
Cam dimensions
Chain drive (Left) ----
Intake “A”
“B”
Exhaust “A”
“B”
30.06 ~ 30.16 mm
(1.1835 ~ 1.1874 in)
35.69 ~ 35.79 mm
(1.4051 ~ 1.4091 in)
30.11 ~ 30.21 mm
(1.1854 ~ 1.1894 in)
36.50 ~ 36.60 mm
(1.4370 ~ 1.4409 in)
(1.1795 in)
29.96 mm
35.59 mm
(1.4012 in)
30.01 mm
(1.1815 in)
36.40 mm
(1.4331 in)
Camshaft runout limit
---
0.03 mm
(0.0012 in)
