Hsun HS700UTV - Adjusting the Throttle Cable

3-6
Note :
Don't lock screw too tight
Turning in Idle speed becomes higher.
Turning out Idle speed becomes lower.
6. sever:
·Tachometer
7. Lower the cargo bed.
8. Install:
·console
·passenger seat
·driver seat

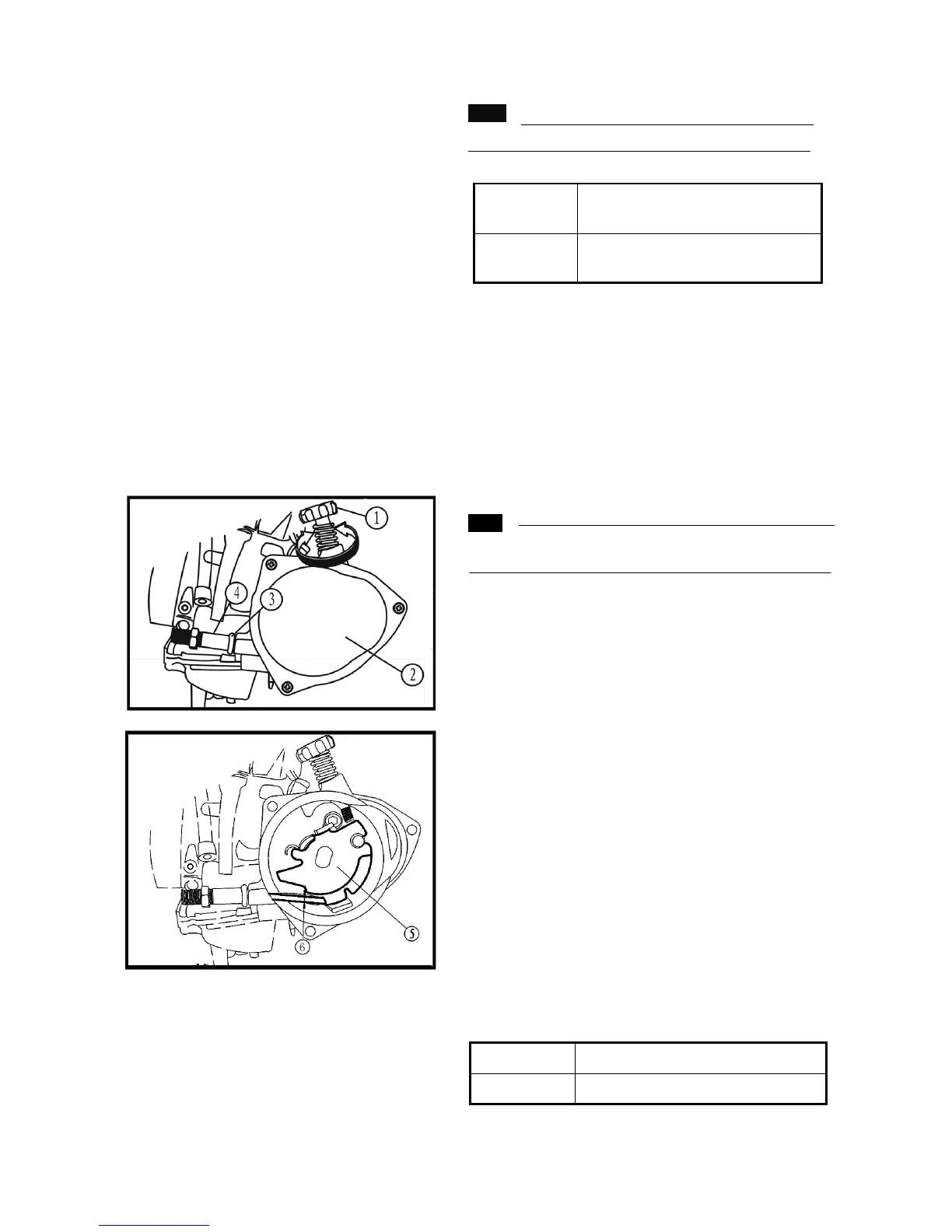

ADJUSTING THE THROTTLE CABLE
Note :
Throttle cable free play should be adjusted
properly before adjusting the engine idle speed.
① Idle adjusting lever
② External shaft cover
③ Throttle Cable Solenoid
④ Adjusting Screw
⑤ Throttle Valves
⑥ Throttle Cable
1. Remove following parts:
·driver seat
·passenger seat
·console
2. Remove:
·Throttle valve cover ②
3. Check:
·throttle cable Slack
○
6 → Remove the slack•
4. Adjust:
·throttle cable
a. Will loosen the locknut . ①
b. Adjusted by regulator
Turning in Slack is increased.
Turning out Slack is decreased.
c. Tighten the locknut.
