· Measuring clearance rules with the valve
clearance.
· If the gap beyond the standard value, repeat the
above steps until the correct gap.
6. Install all removed parts
According to remove the reverse order fo
installation
① Engine fan components
② Fan cover
③ spark plug
④ Valve cover (exhaust)
⑤ Valve cover (intake)
⑥ Lower the cargo bed.
⑦ console
⑧ passenger seat •
⑨ driver seat •
Refer to “SEATS,” in chapter 5.
IDLE ADJUSTMENT
1. Starting engines, thorough warm machine
2. Remove:
·Lift the cargo bed up.
·driver seat
·passenger seat
·console
Refer to “SEATS ” in chapter 5.
3. Install

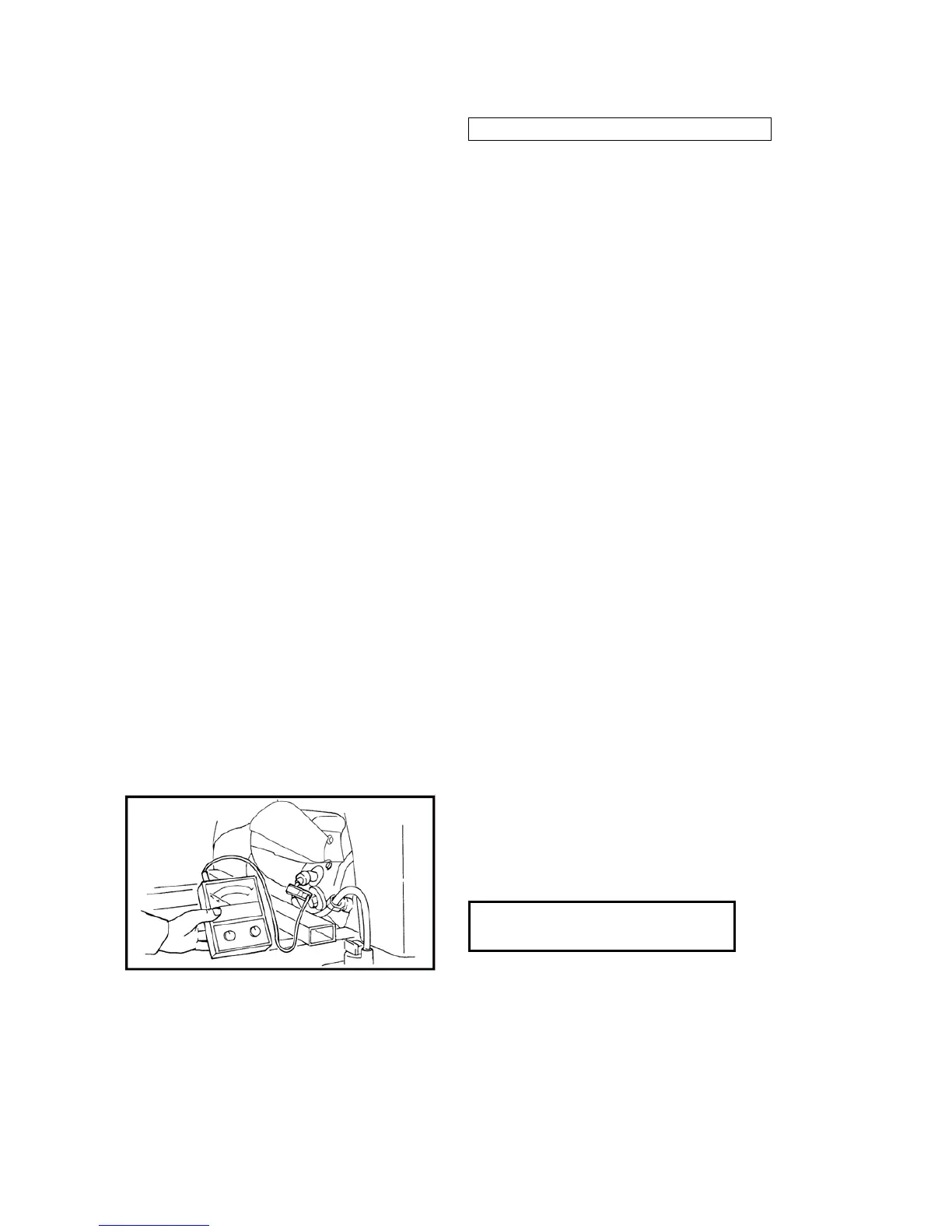

·Engine tachometer
4. Confirm speed
·Standard Engine Idle speed
Beyond the standard → Adjust.
5. Adjust:
·Engines idle speed adjustment
a. Turn the throttle stop screw in or out until the
specified idle speed is obtained.
14（1.4kg.m）
Engine idle speed
1,400 ±100 r/min
