GENERAL INFORMATION

1-2

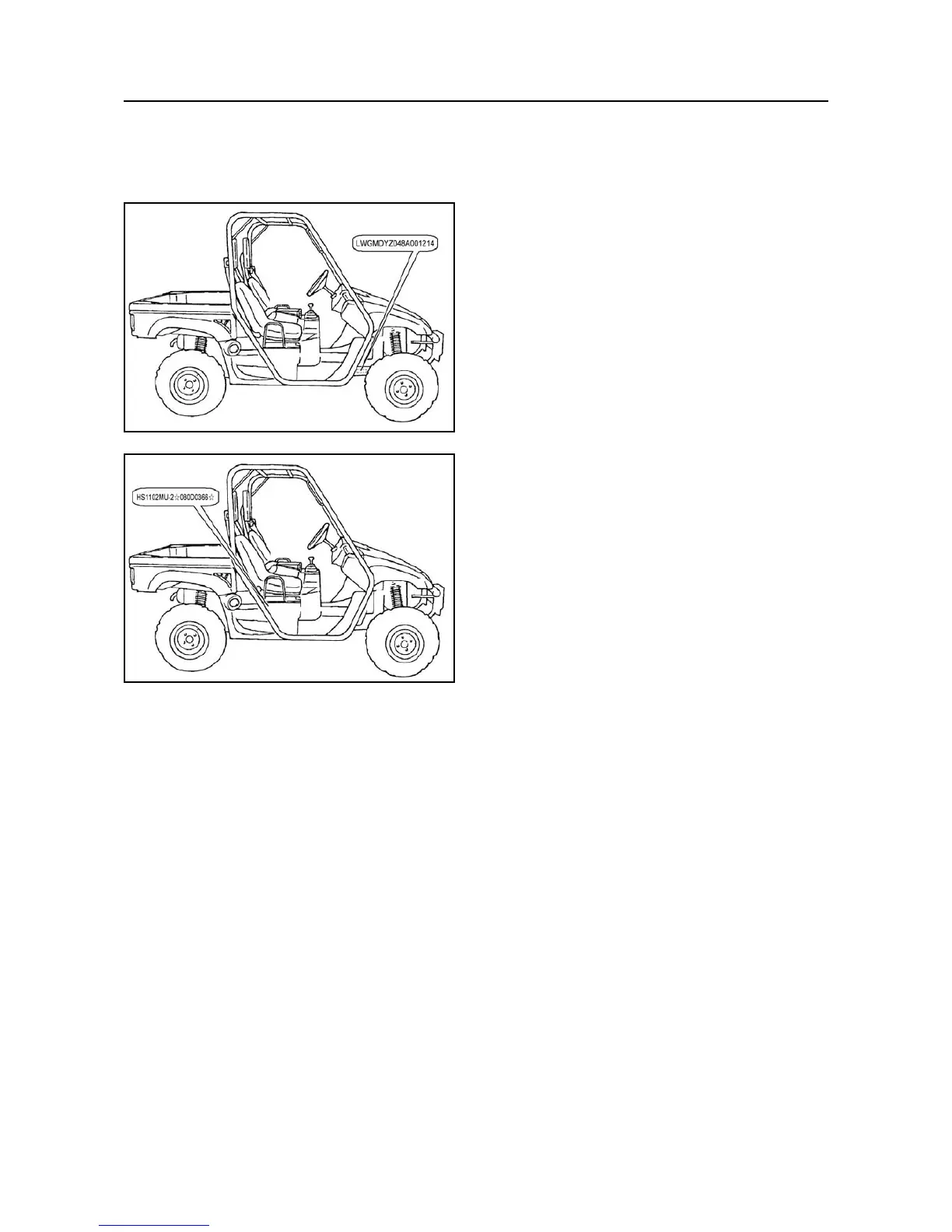

IDENTIFICATION CODE

Frame No.

Frame No. is carved in the lower right side of

Figure.

Engine No.

Engine NO. is carved on the right side of the

engine, Figure.
