3-7
Note :
After adjustment throttle pressure on the
accelerator cable several times, ensuring the
throttle ③ , then close completely loosen the
accelerator pedal .
5. Install:
·console
·passenger seat
·driver seat

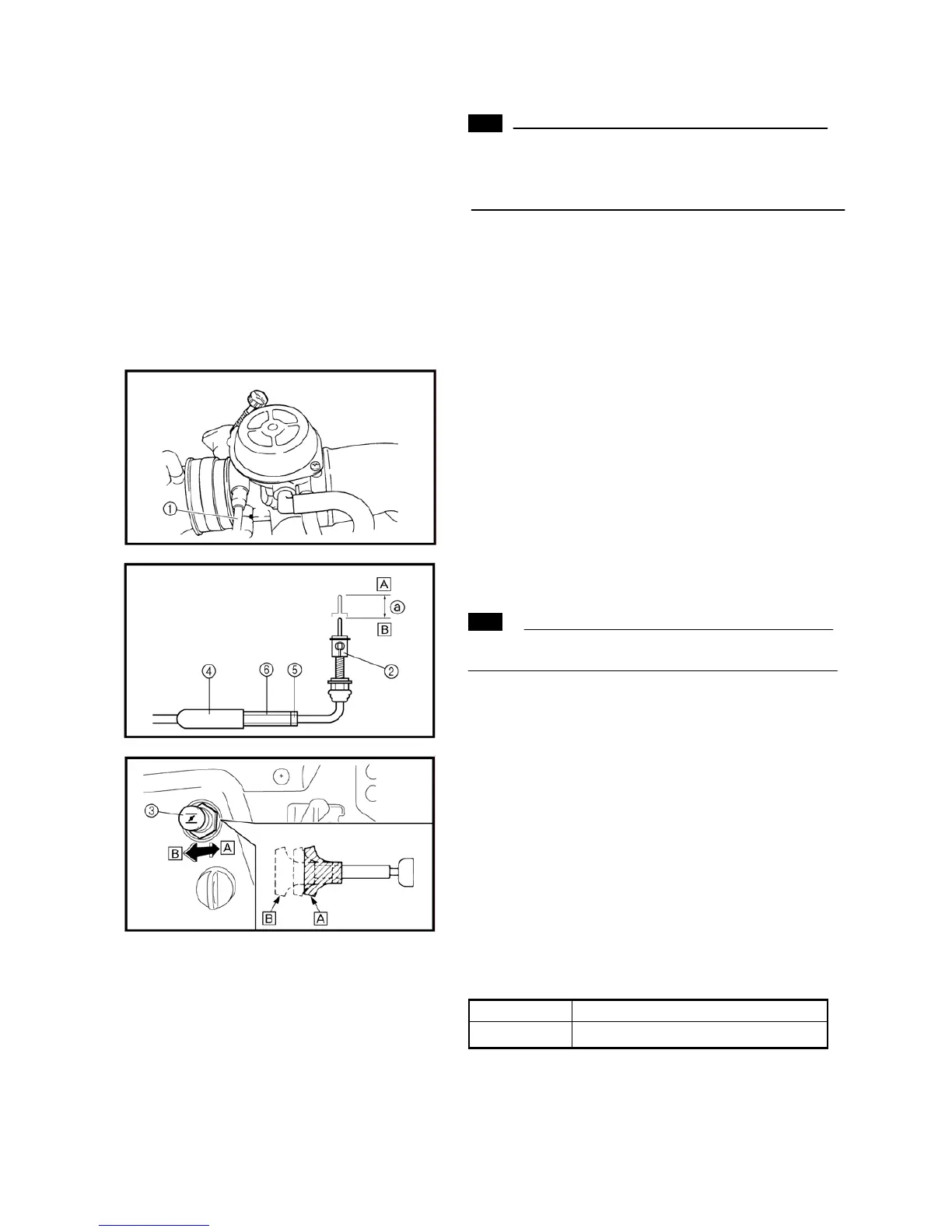

ADJUSTING THE STARTER CABLE
1. Remove:
·driver seat
·passenger seat
·console
Refer to “SEATS” in chapter 5.
2. Adjust：
·starter cable
a. Disconnect the starter cable ① from the carbureto
body.
Note :
Do not remove the starter plunger from the②
starter cable.
b. Measure the starter plunger stroke distance ○a o
the starter (choke) knob ③ fully close to fully open
position. If the distance is out of specification adjust it
as described below.
starter plunger stroke distance 13mm (0.51in)
□A Fully closed position
□B Fully open position
c. Pull back the boot .④
d. Loosen the locknut .⑤
e. Turn the adjuster i⑥ n or out until the correct
distance is obtained.
Turning in Distance increased.
Turning out Distance decreased.
f. Tighten the locknut . ⑤
g. Push in the boot .④
h. Connect the starter cable to the carburetor.
