3-18

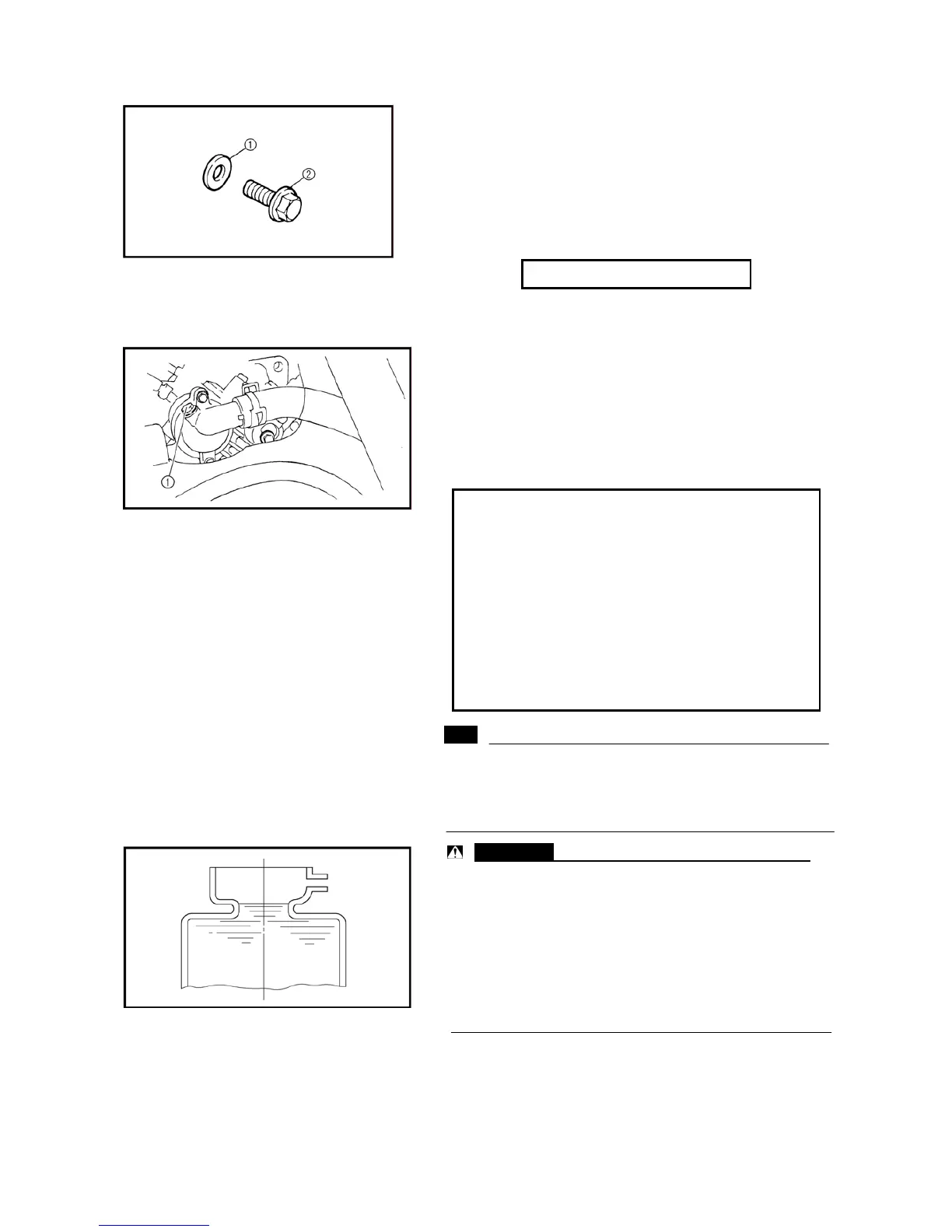

9. Check:
·copper washer ①
·coolant drain bolt ②
Damage → Replace.
10. Install:
·coolant drain bolt (water pump) T R.
10 Nm (1.0 m · kg, 7.2 ft · lb)
11. Connect:
·water pump inlet hose
·coolant outlet hose
12. Remove:
·air bleed bolt ①
13. Fill cooling
(with the specified amount of the recommended
coolant)
Recommended antifreeze
High-quality ethylene glycol antifreeze
containing corrosion inhibitors for aluminum
engines
Mixing ratio
1 : 1 (antifreeze : water)
Quantity
Total amount
2.5 L (2.20 Imp qt, 2.64 US qt)
Coolant reservoir capacity
0.35 L (0.31 Imp qt, 0.37 US qt)
Note:
The specified amount of coolant is a standard
amount. Fill the cooling system with coolant until
coolant comes out of the hole for the air bleed bolt.
Coolant is potentially harmful and should be handled
with special care.
WARNING:
·If coolant splashes in your eyes, thoroughly wash
them with water and consult a doctor.
·If coolant splashes on your clothes, quickly wash it
away with water and then with soap and water.．
·If coolant is swallowed, induce vomiting and get
immediate medical attention.
·If coolant comes into contact with painted
surfaces, immediately wash them with water.
·Do not mix different types of antifreeze.
