CYLINDER HEAD
4-4

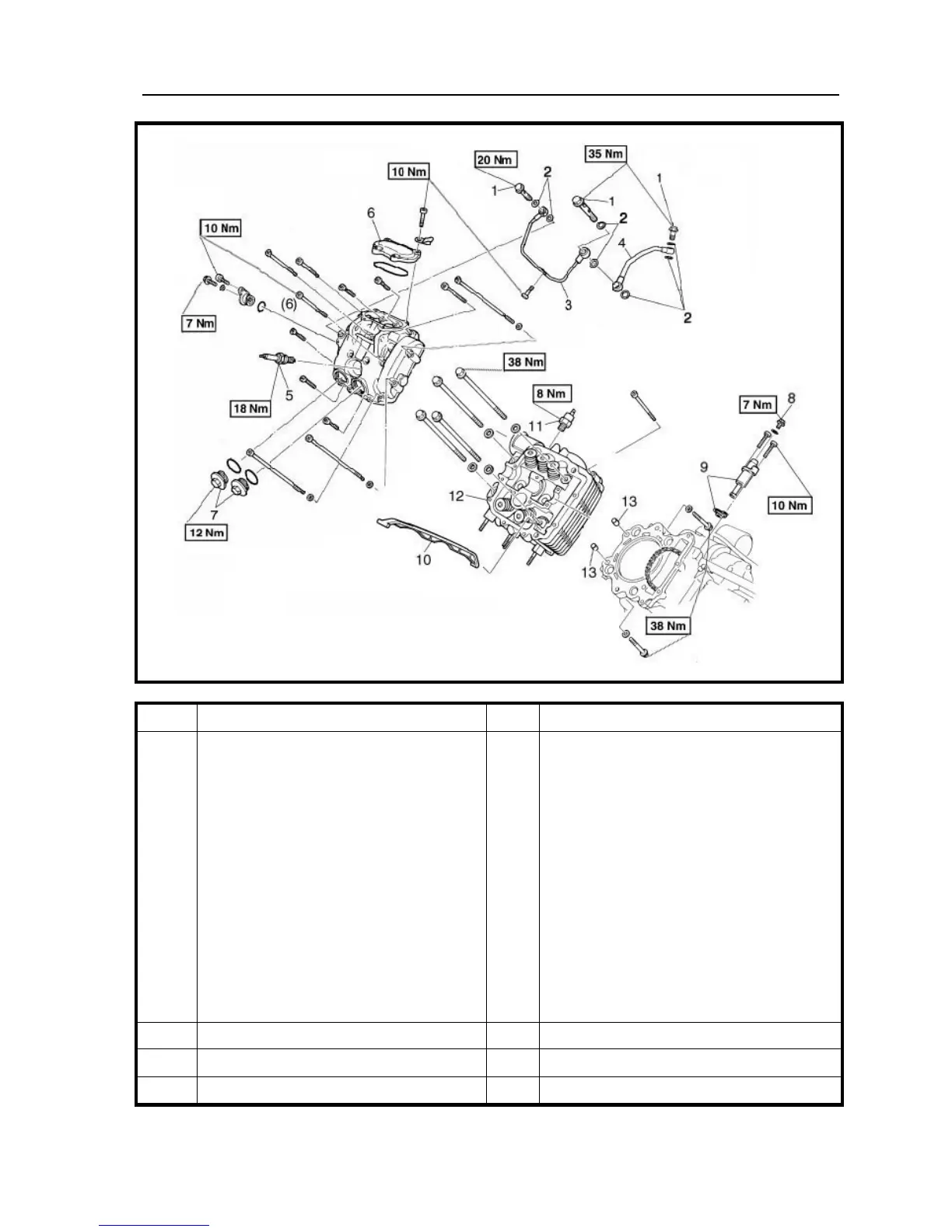

CYLINDER HEAD AND CYLINDER HEAD COVER
No. Name part Qty Remarks
Removing the cylinder head cover
and cylinder head
Remove the parts in the order listed.
1 Union bolt 3
2 Copper washer 7
3 Oil delivery pipe 3 1
4 Oil delivery pipe 2 1
5 Spark plug 1
6 Tappet cover (intake) 1
7 Tappet cover (exhaust) 2
8 Timing chain tensioner cap bolt 1
9 Timing chain tensioner / gasket 1/1
10 Timing chain guide (exhaust side) 1
11 Thermo switch 1
1
12 Cylinder head
1
To Next Page
